Figure 4 3D Printer

In stock

SKU

Figure43DS

Be the first to review this product

Product of Interest:

Figure 4 3D Printer
SKU: Figure43DS

3D Systems Figure 4 3D printer makes digtal 3D production a reality—with increased productivity, durability, repeatability and lower total cost of operations (TCO).

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

3D Systems Figure 4 3D Printer

Affordability

The Figure 4 is a compact and easy-to-use industrial 3D printer. It delivers industrial-grade durability, speed and quality at an affordable price and low total cost of operations.

Broad Range of Materials

A broad and expanding range of high performance 3D printing materials are available on the Figure 4 3D printer. These 3D materials address a wide variety of applications needs for both functional prototyping and direct production of end-use parts.

Versatility

The Figure 4 3D printer enables quick and easy material changeover which allows for functional prototyping and production application diversity with the same printer.

3D Printing Materials

Production_Ready

3D Printing Process

Digital Light Processing (DLP)

Printing Material

High Performance UV Curable Resins

Build Envelope Size

Standalone 124.8 x 70.2 x 196 mm (4.9 x 2.8 x 7.7 in)

Modular 124.8 x 70.2 x 346 mm (4.9 x 2.8 x 13.6 in)

Popular Materials

TOUGH-GRY 15

PRO-BLK 10

HI TEMP 300-AMB

RUBBER-65A BLK

Figure 4 Material Selection PDF

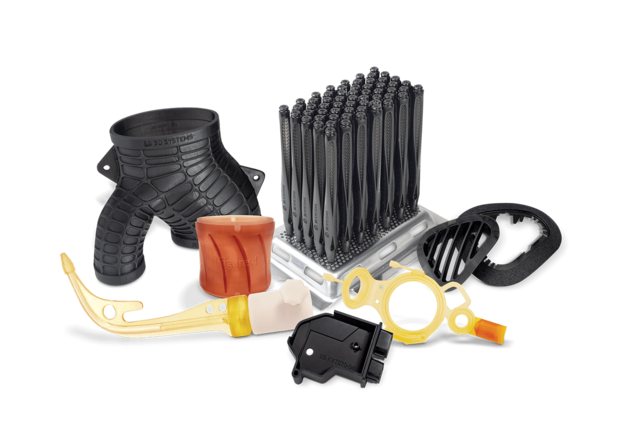

3d-systems-figure4-new-material-grouping-web_0

There is a Figure 4 solution to

match any production requirements:

fig4.small

Figure 4 Standalone

Figure 4 Modular

Software

3D SPRINT Software included

3D Printer Footprint (Standalone or Modular)

Standalone: 68.1 x 70.4 x 135.6 cm (26.8 x 27.71 x 53.38 in)

Modular Base: 122.6 x 72.9 x 209.1 cm (48.2 x 28.7 x 82.3 in)

Modular Auxiliary: 66.1 x 72.9 x 209.1 cm (26 x 28.7 x 82.3 in)

Weight

Standalone: 120 lbs

Power Requirements

Standalone: 100-240 VAC, 50/60 Hz, Single Phase, 4.0A

Modular: 100-240 VAC, 50/60 Hz, Single Phase, 15A/7.5A

3d-systems-3DSprint_Cover_0

3d-systems-figure-4-tough-gry-15-1

Revolutionary parts are just a form away!

Connect with one of our additive manufacturing experts to Request a Quote, Sample part or Discuss an 3D printing application

Metal_Print_Farm_Models

Figure 4 Customer Success Stories

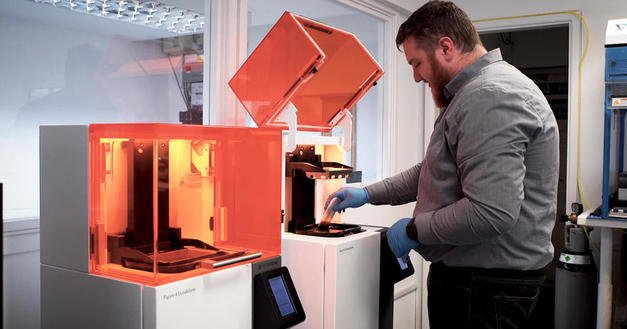

3d-systems-acs-figure4-print-prep-s

Advanced Communication Solutions (ACS)

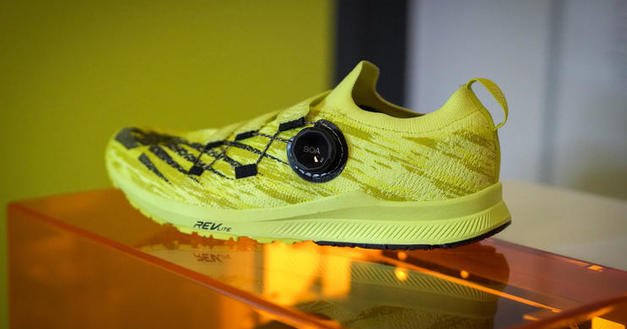

cs-boa-fit-system-on-figure-4-s

BOA

BOA Dials In to Better Performance Fit Systems with Figure 4 Parts
