Markforged Metal X 3D Printer

In stock

Product of Interest:

Markforged Metal X 3D Printer
SKU: Markforged Metal X 3D Printer

From the company that revolutionized 3D printing with composite carbon fiber, comes a breakthrough in metal. The Metal X greatly accelerates innovation, delivering metal parts overnight using a new technology at a fraction of the cost. Leave 20th century manufacturing in the dust and create anything from industrial replacement parts to injection molds to working prototypes.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Markforged Metal X 3D Printer

The Metal X System is the most accessible way to fabricate complex metal parts in the widest variety of advanced metals.

Simple, Yet Powerful

The Metal X is the most intuitive, simple to use metal 3D printer available today. Print a wide range of materials from stainless steels to copper with minimal training on a closed workflow.

Safe and Affordable

The Metal X is designed to be safe to use and accessible for all fabricators. It costs 5-10 times less than DMLS metal 3D printing systems and requires no dedicated operator, no powder management system, and minimal PPE.

Best-In-Class Reliability

The Metal X is purpose-built for great part quality and a seamless user experience. Markforged combines best-in-class software, materials research, and an advanced motion system to deliver industrial-grade parts reliably.

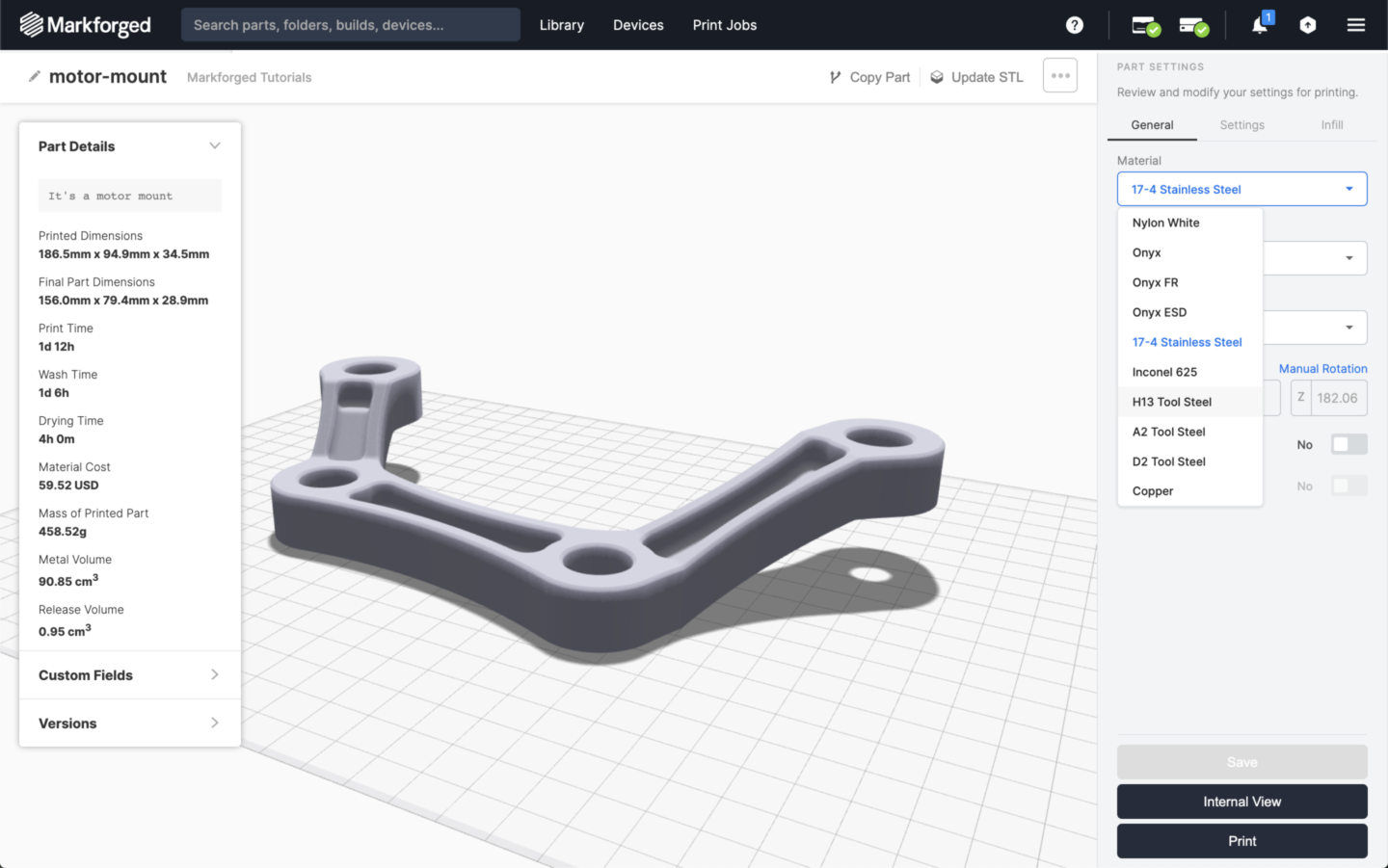

Design your part, upload it into our browser-based software, select from a wide range of metals, and hit print. It's that simple.

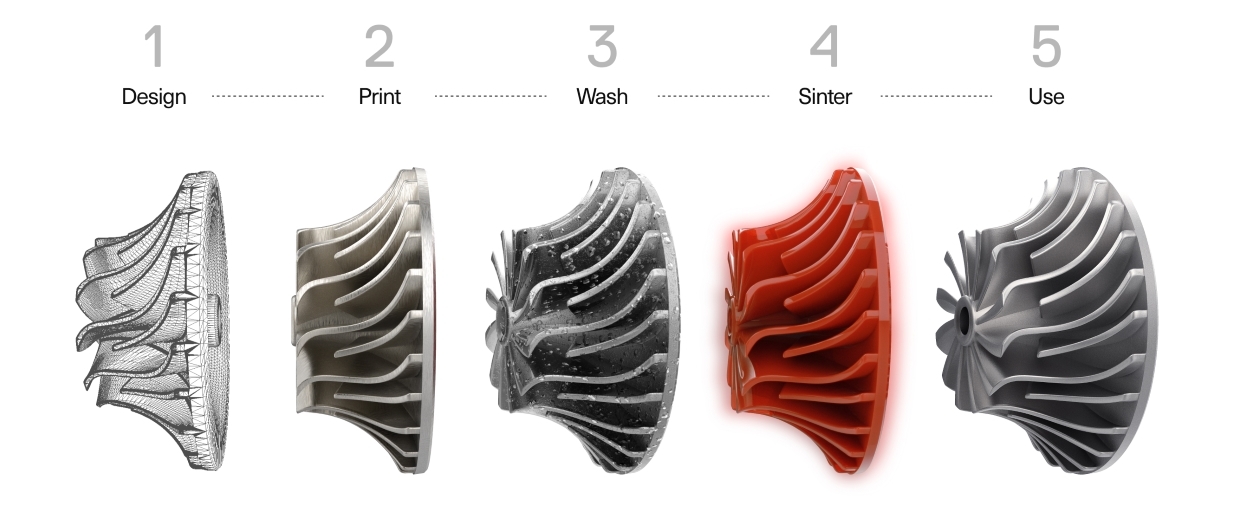

3D_Prining_Materials_Process_MetalX_slim

3D Printer

3D Printing Materials

System Details

Documents

3D Printing Process

Metal FFF

Z Layer Resolution

50 μm - 125 μm (Post-Sinter)

Printing Media

Bound Powder Filament

Internal Part Geometry

Closed Cell Infill (Triangular) or Solid Parts

Print Bed

Heated, Auto Leveling, Replaceable Print Sheets

Build Envelope Size

300 mm x 220 mm x 180 mm (11.8 x 8.6 x 7.08 in)

17-4 PH Stainless Steel

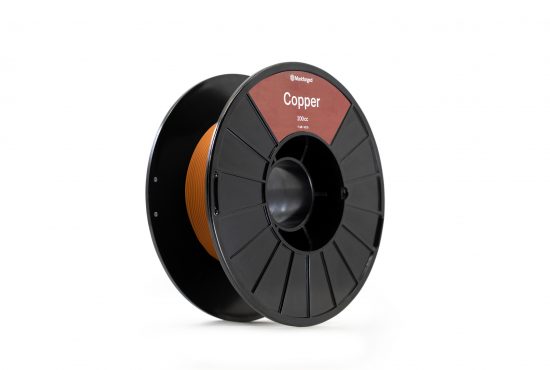

Copper

Inconel 625

H13 tool steel

A2 tool steel

D2 tool steel

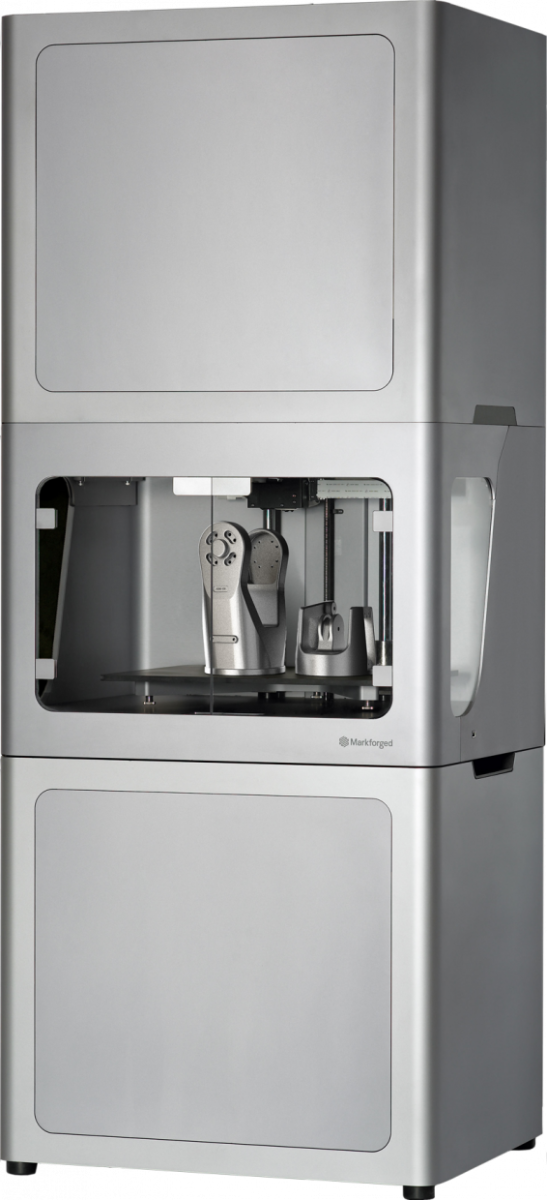

Metal X Printer

The Markforged Metal X is a new kind of metal printer. By printing metal powder bound in a plastic matrix, Markforged has become the first company to eliminate the safety risks associated with traditional metal 3D printers. That means no loose powder, no lasers, and none of the traditional safety precautions. It’s safe to use in a shop environment with minimal facility upgrades.

In practice, the Metal X is essentially a very advanced FFF 3D printer. Featuring a precision machined gantry, a heated chamber and print bed, and advanced extrusion hardware, the Metal X is equipped to reliably print you durable parts. It is intentionally designed, with wear components and consumables — including print sheets, nozzles, and brushes — accessible and trivial to swap.

Wash-1

The Wash-1 is a solvent-based debinding system. It primarily uses Opteon SF-79, a high-performance fluid designed to offer superior cleaning power, higher efficiency, and safety in an environmentally sustainable way — Opeton SF-80 or Tergo Metal Cleaning Fluid can be substituted if needed.

The Wash-1 operates with simple ventilation and features an extremely simple user experience. It’s been tested and verified as a shop-safe system.

Sinter-2 and Sinter-1

The Markforged Sinter-2 and Sinter-1 are highly optimized tube furnaces used for sintering 3D printed metal parts. They provide best in class sintering reliability and run times and are equipped with advanced safety features. The Sinter-2 is more advanced than the Sinter-1 — featuring a larger working volume, more precise temperature control, and a mechanical door interlock.

The Sinter-1 and Sinter-2 typically have run times between 26 and 31 hours. However, the Sinter-2 can process small parts in express mode, where it can sinter up to 250g of parts in just 17 hours.

Software

Markforged Eiger Cloud (Other options available at cost)

3D Printer Footprint

575 x 467 x 1120 mm (22.7 x 18.4 x 44.1 in)

Weight

75 kg (160 lbs)

Power Requirements

100–120 / 200-240 VAC (12A / 6A), IEC 60320 type C20
