MultiJet Quality, Speed, and Ease of Use

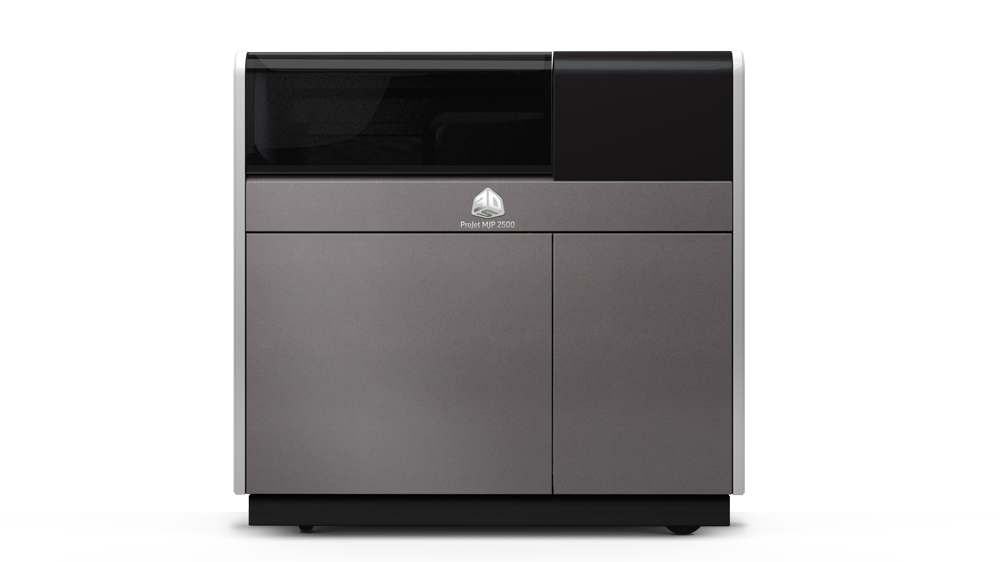

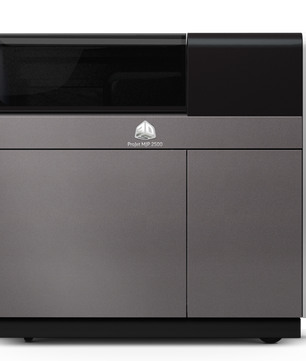

The ProJet MJP 2500 Plus prints precision rigid and elastomeric parts with true-to-CAD accuracy, superior surface finish, and high-quality edge fidelity for real functional testing. Capable of printing in Ultra High-Definition mode, it resolves features down to 300 microns or finer — a meaningful step up from desktop-class printers for concept modeling, validation prototyping, and biocompatible medical device applications.
An industrial print head and optimized print parameters deliver up to 3x faster print speeds than similar-class printers, while the optional MJP EasyClean System removes supports hands-free in under 30 minutes — getting finished parts into hand up to 4x faster than manual cleaning methods.
Faster Parts, Fewer Manual Steps
Three capabilities move the MJP 2500 Plus from desktop hobby printing to real production throughput.

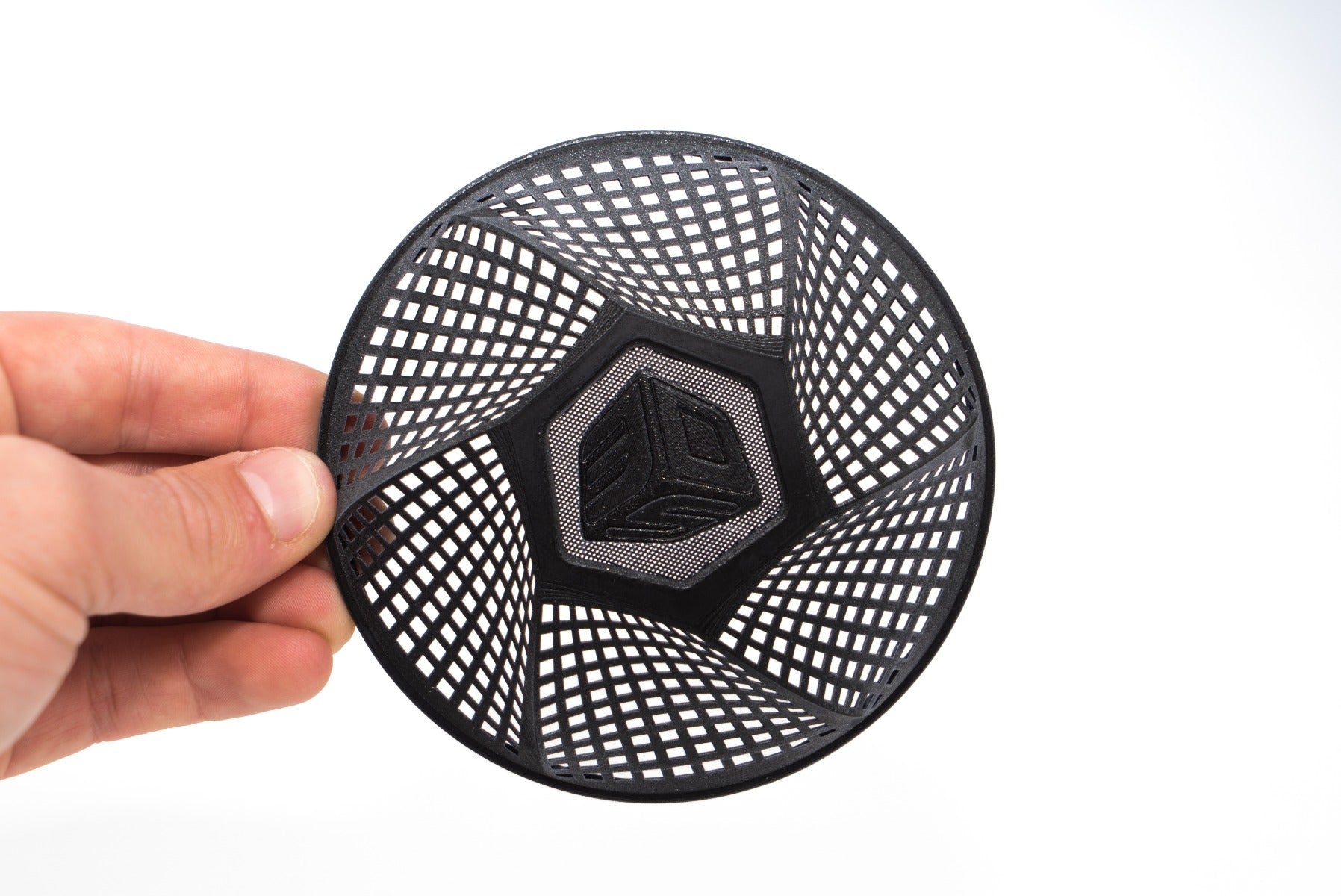

Ultra High-Definition Printing
HD mode resolves 800 x 900 x 790 DPI at 32 micron layers, with UHD mode capable of features down to 300 microns or finer.
3x Faster Industrial Print Head
Optimized print parameters deliver up to 3x higher print speeds than similar-class printers, built for 24/7 usability rather than occasional desktop runs.
MJP EasyClean System
An optional hands-free cleaning system removes wax support material in under 30 minutes, preserving fine detail without manual labor.
A Broad Range of VisiJet Materials
The MJP 2500 Plus is compatible with a wide selection of VisiJet materials — rigid plastics in clear or opaque colors, engineering-grade and high-temperature resistant materials, and elastomerics that mimic real-world flexible parts. Biocompatible materials support USP Class VI and ISO 10993 certification requirements for medical device applications.
- Rigid, engineering-grade, and high-temperature resistant materials

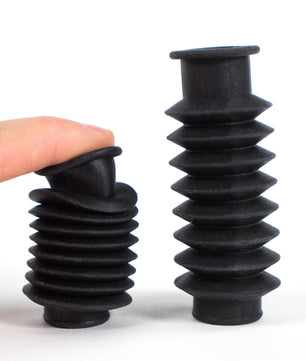

- Elastomeric materials for flexible functional testing
- USP Class VI / ISO 10993 biocompatible options for medical devices
Material Types

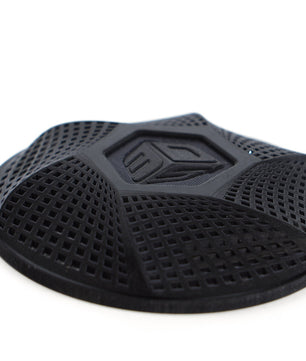

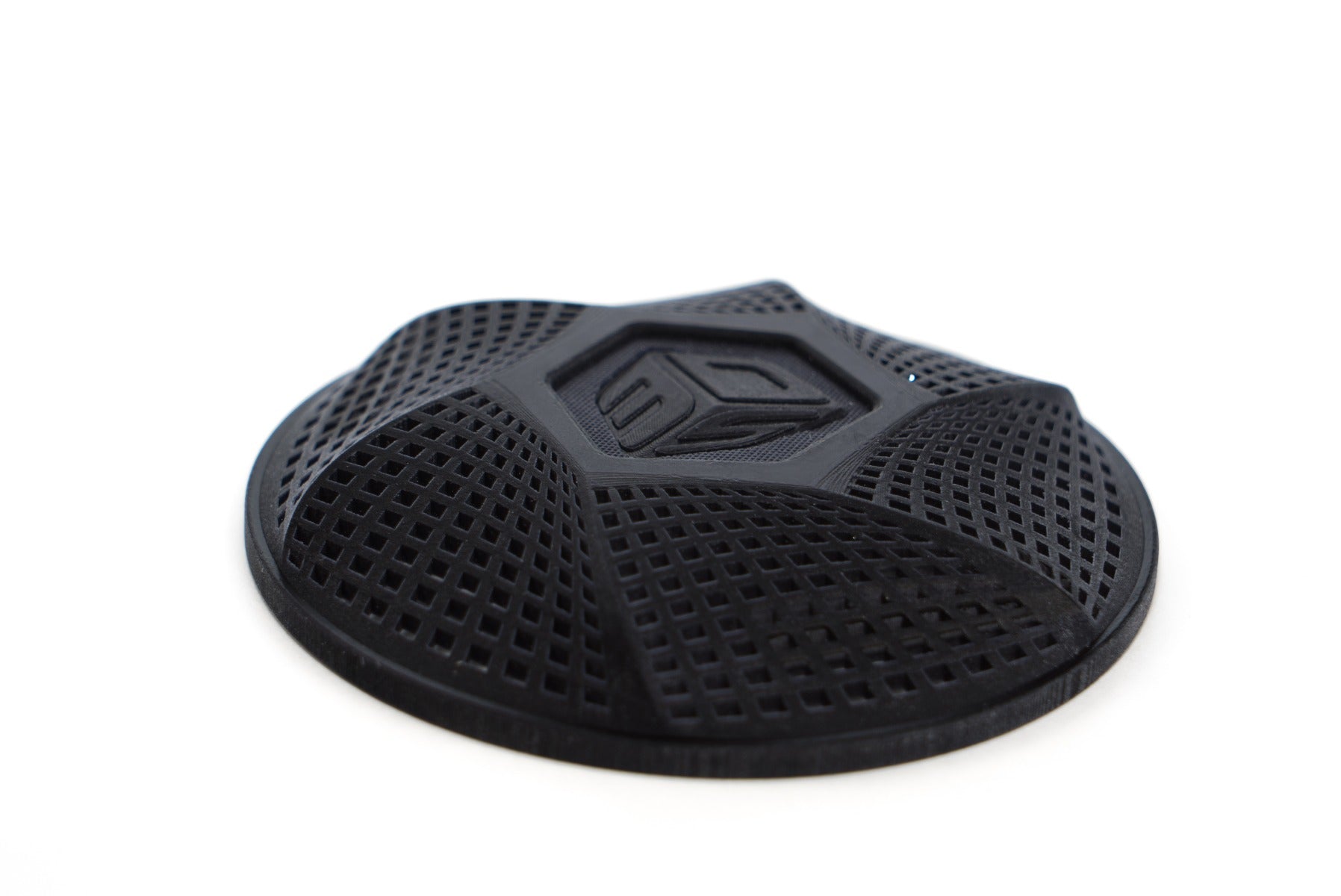

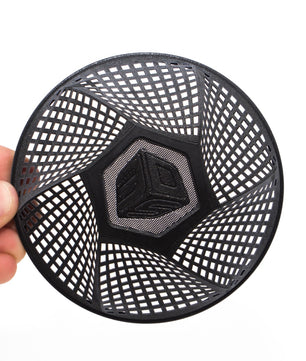

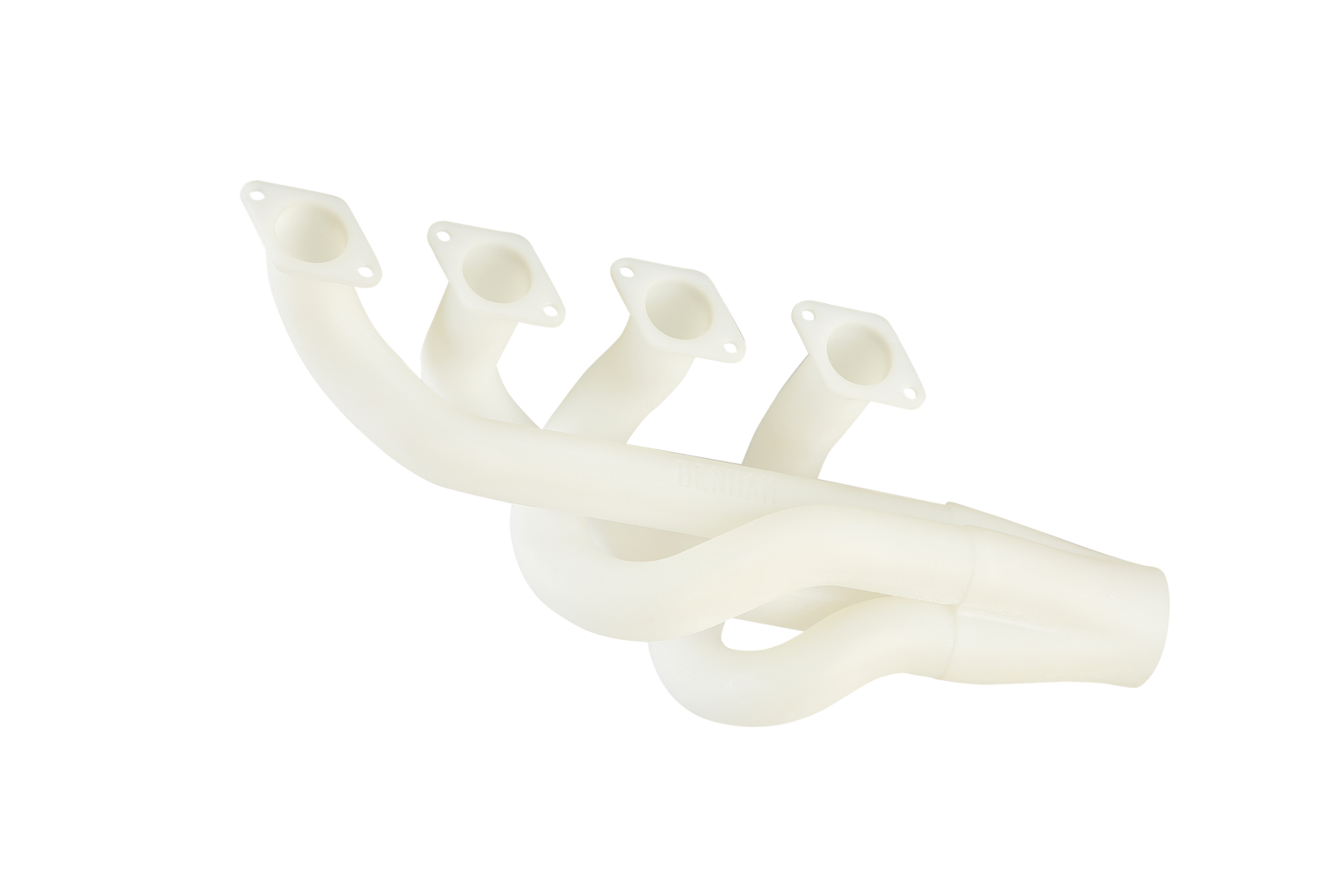

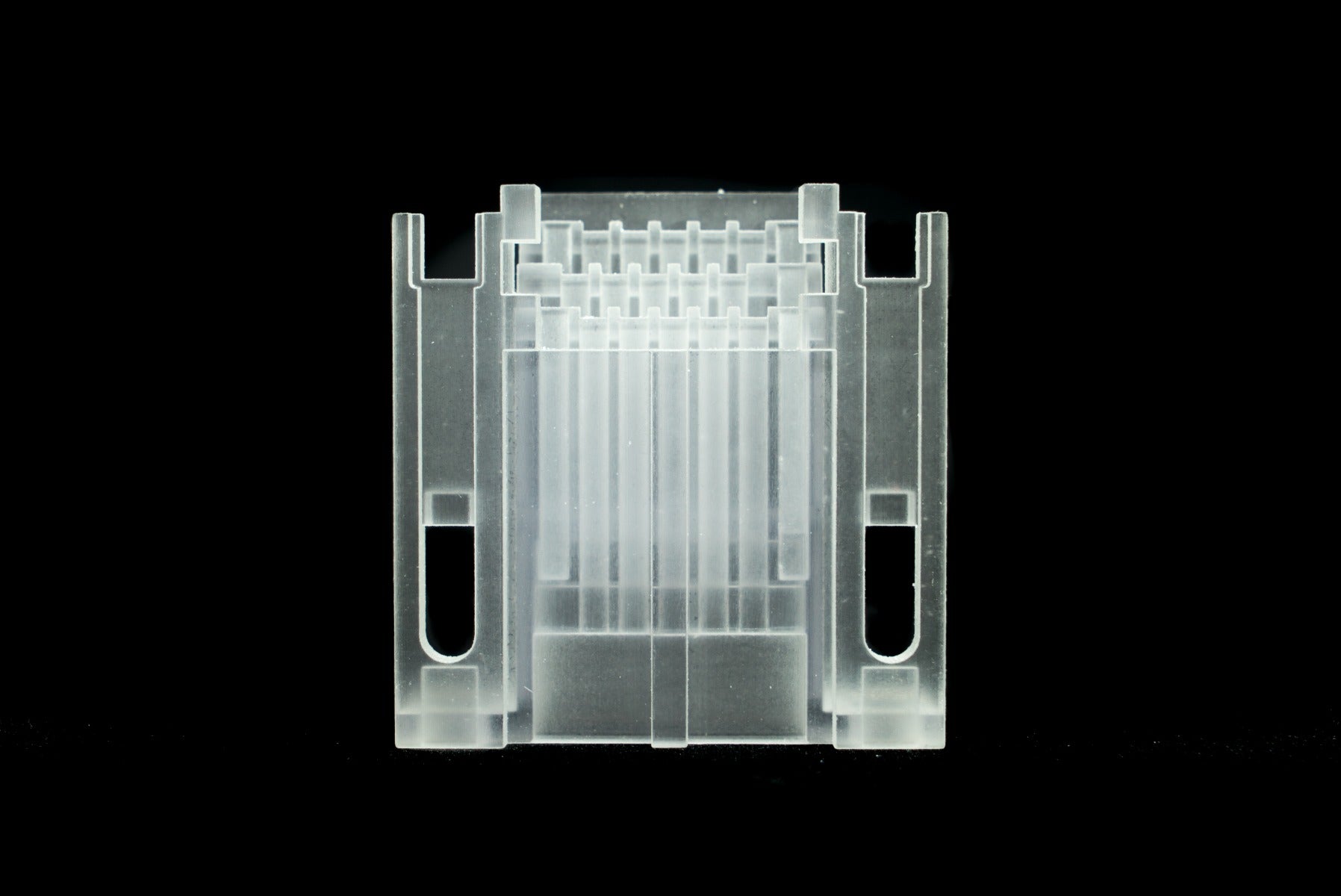

Rigid & Engineering-Grade

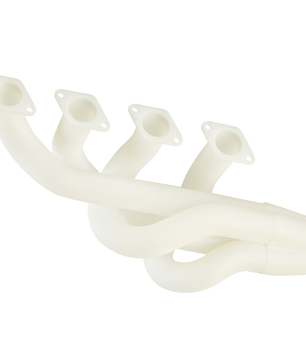

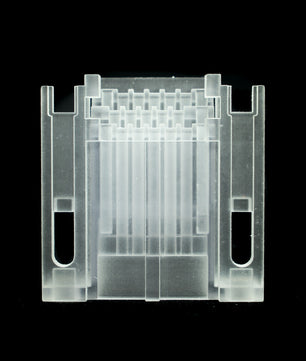

Clear to a range of opaque colors, suited to concept modeling, form-and-fit testing, and functional prototyping.

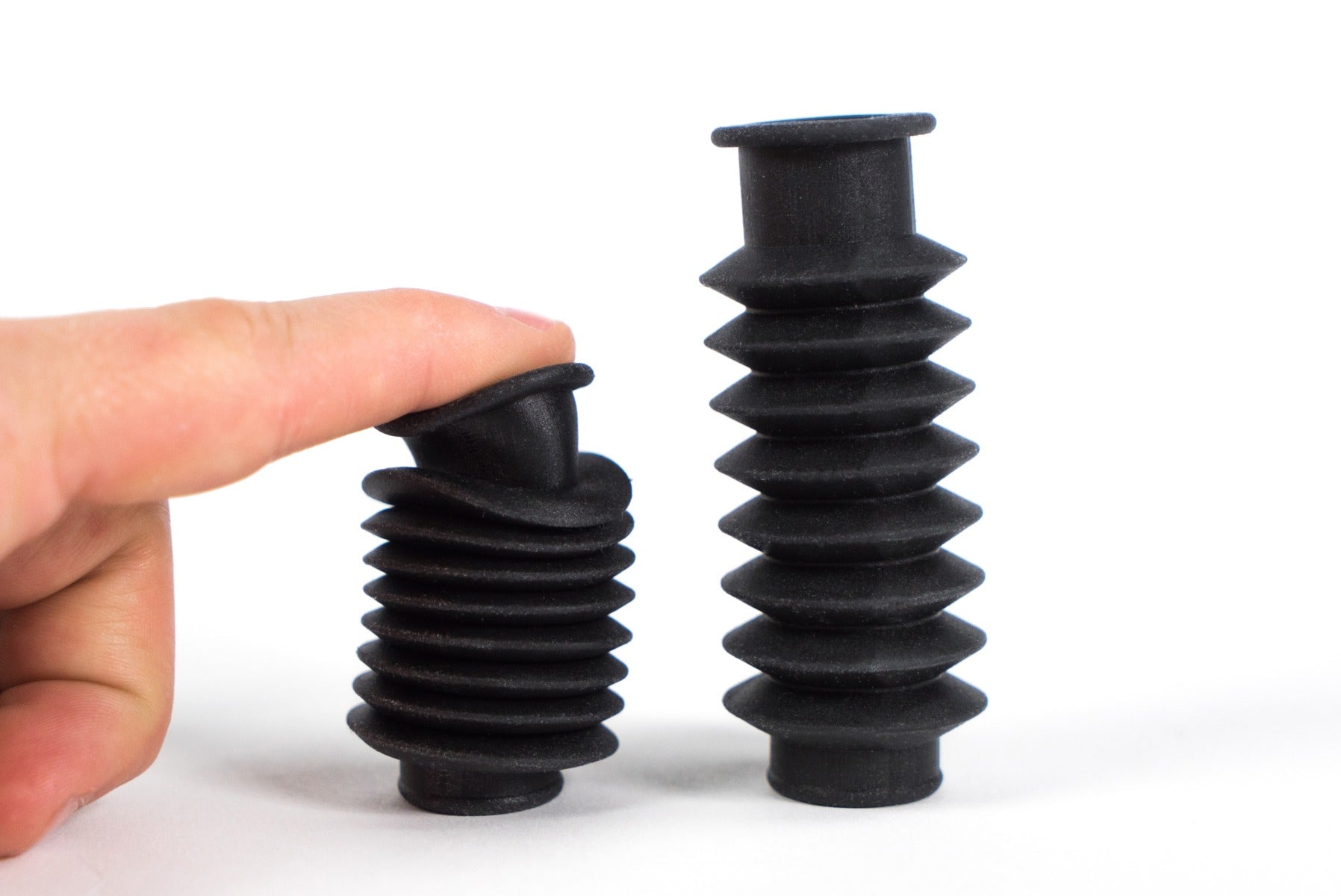

Elastomeric & High-Temp
Materials engineered to mimic flexible engineering plastics and withstand functional testing at elevated temperatures.
Material compatibility is printer-model dependent, so the 2500 Plus's expanded material range is a key reason to choose it over the base 2500.
3D Sprint & 3D Connect
Streamlined Workflow, Proactive Service
3D Sprint print client software manages the file-to-part process end to end, while 3D Connect provides a secure cloud-based link to 3D Systems' service teams for proactive support, improved uptime, and production assurance.
Full Specifications
Print & Materials
| Technology | MultiJet Printing (MJP) |
| Print Resolution (HD Mode) | 800 x 900 x 790 DPI, 32 micron layers |
| Minimum Feature Size (UHD Mode) | Down to 300 microns or finer |
| Accuracy (typical) | Within 0.025–0.05 mm per 25.4 mm (±0.001–0.002 in/in) |
| Materials | VisiJet family: rigid, engineering-grade, high-temperature resistant, elastomeric, biocompatible (USP Class VI / ISO 10993) |
Build Volume & Output
| Max. Build Envelope (W×D×H) | 294 x 211 x 144 mm (11.6 x 8.3 x 5.6 in) |
| Print Speed | Up to 3x faster than similar-class printers |
| Post-Processing | MJP EasyClean System (optional) — hands-free support removal in under 30 minutes |
Power & Environment
| Power Requirements | 100–127 VAC, 50/60Hz, 1-phase, 15A — or 200–240 VAC, 50Hz, 1-phase, 10A |
| Operating Temp. | 64–82°F (18–28°C); print speed reduced above 77°F (25°C) |
| Operating Humidity | 30–70% Rh |
| Noise Level | Less than 65 dBA (fan at medium speed, estimated) |
Software, Certifications & Dimensions
| Software | 3D Sprint print client; 3D Connect cloud-based service |
| Certifications | CE |
| Dimensions, No Box (W×D×H) | 44.1 x 29.1 x 42.1 in (1,120 x 740 x 1,070 mm) |
| Weight, No Box | 465 lb (211 kg) |
