One Machine, Roll or Rigid

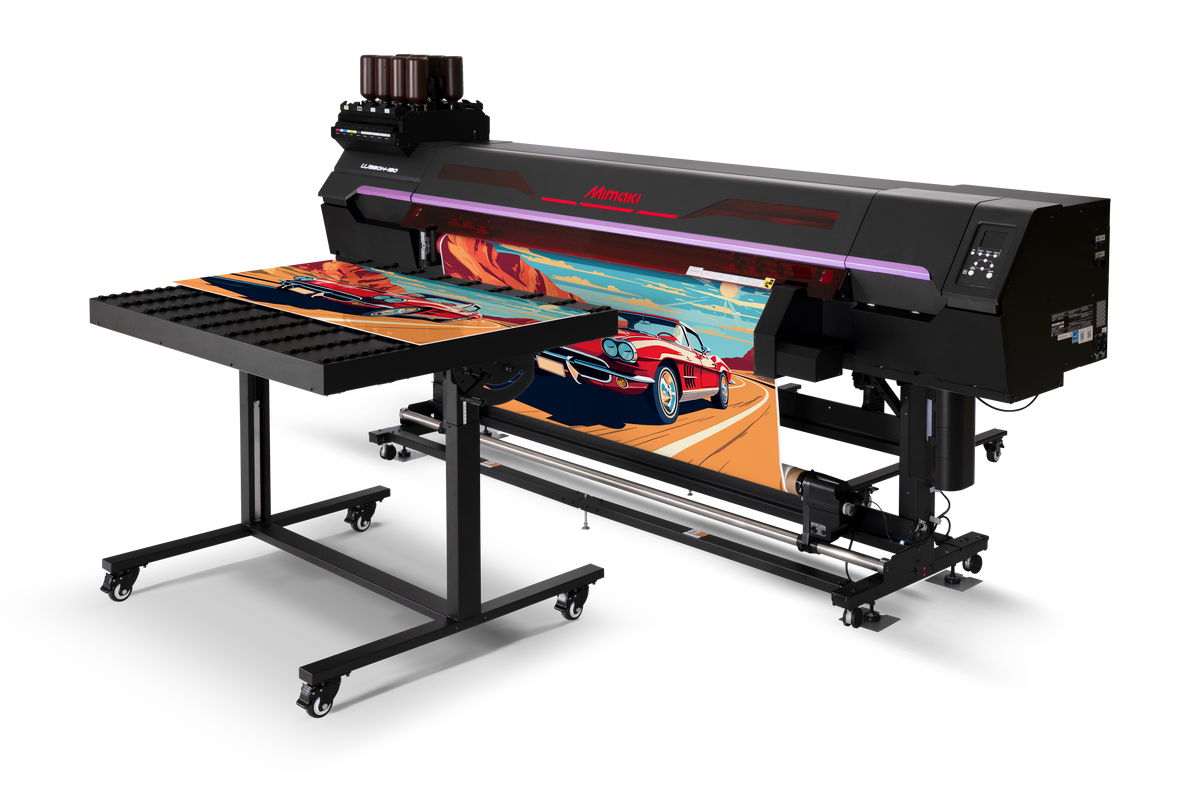

The UJ330H-160 is Mimaki's most advanced hybrid printer yet, built on the proven 330 Series print engine to handle an exceptional range of roll and rigid media in a single footprint. Dual printheads run flexible 6-color configurations — x2 CMYK, CMYK + Clear + White, or CMYK + Light Cyan + Light Magenta + White — so one machine covers vehicle wraps, window graphics, and 4' x 10' aluminum composite signs without swapping equipment.
A generous 2" head clearance and an innovative vacuum transport belt system eliminate the pinch rollers that mark and shift thinner media, keeping print quality consistent whether the job is a roll of vinyl or a rigid board.
Built to Switch, Built to Hold
Three features let the UJ330H-160 move between media types without losing precision.
Dual-Media Versatility
Switch between rigid and roll-to-roll applications in minutes — from window graphics and vehicle wraps to large-format aluminum composite signage on one machine.
Belt Transport System
A newly developed belt conveyor replaces pinch rollers, providing stable transport for thin films and fabrics while suppressing the wrinkles and loosening other printers struggle with.
Heavy-Duty Rigid Support
Auto-Vacuum plus front and rear lock rollers handle large, heavy materials — including boards up to 2" thick and standard aluminum composite signboard.
SVHC/CMR-Free Ink, LamiFit Lamination Support
UJ330H-160 ink is formulated free of SVHC and CMR substances for a safer workplace, and total maximum power draw is just 1.6kW — compared to 5kW for latex and 2.9kW for eco-solvent systems. Mimaki's LamiFit technology fills blank print areas with clear ink to keep media topography level, preventing trapped air bubbles and "silvering" during board lamination.
- SVHC-free and CMR-free UV ink formulation
- Total max power draw of just 1.6kW
- LamiFit technology prevents lamination silvering on boards
Ink Types
ELS-170 / ELS-175
Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, White, Clear — configurable as dual CMYK, CMYK+Clear+White, or CMYK+light colors+White.
LUS-210 (Select Markets)
Cyan, Magenta, Yellow, Black, and White, available as a regional alternative in select countries.
Six configurable ink slots let the UJ330H-160 run standard four-color work or scale into light colors, white, and clear for premium textured and layered output.
Mimaki Core Technologies & PICT
Smart Automation, Real-Time Visibility
NCU, NRS, DAS2, VDT, MWDT, and MAPS4 work together for consistent image quality with less operator intervention, while PICT — Mimaki's cloud-based printer status monitoring tool — delivers real-time visibility into ink usage and production status from a phone.
Full Specifications
Print & Ink
| Print Head | 2 heads (staggered), 4 print bars per head |
| Print Resolution | Y: 600 / 1200 dpi — X: 600 / 900 / 1200 / 1800 dpi |
| Print Speed (4 Color Mode) | 236.8 sq ft/hr (22.0 m²/hr) max |
| Ink Type | ELS-170 & ELS-175: CMYK-KYMC / CMYK+Clear+WW / CMYK+Lm+Lc+WW — LUS-210 (select markets): CMYK+WW |
| Ink Package | 1L bottle |
Media & Print Area
| Max. Print Area (Rigid) | 5 ft x 10 ft |
| Max. Media Width (Roll) | 64 in (1,620 mm) |
| Max. Media Thickness | Up to 2 in (50 mm) |
| Max. Media Weight | Rigid: up to 55 lb (25 kg) — Roll: up to 99 lb (45 kg) |
Power & Environment
| Power Supply | AC (100–120V / 200–240V ±10%) × 2, 50/60Hz ±1Hz |
| Power Consumption | Max. 1,600W — Average (operating): 800W — Sleep mode: 4.5W or less |
| Operating Temp. | 68–86°F (20–30°C) |
| Operating Humidity | 35–65% |
Interface, Certifications & Dimensions
| Interface | Ethernet 1000BASE-T (recommended) / USB 2.0 Hi-Speed |
| Certifications | IEC 62368-1, CB, CE Marking (EMC/LVD/Machinery/RoHS), REACH, VCCI Class A, FCC Class A, KC, RCM, EAC, UKCA, Energy Star |
| Dimensions (no tables) | 3,225 x 785 x 1,420 mm (126.9 x 30.9 x 55.9 in) |
| Dimensions (one set of tables) | 3,225 x 2,664 x 1,420 mm (126.9 x 104.9 x 55.9 in) |
| Dimensions (two sets of tables) | 3,225 x 4,712 x 1,420 mm (126.9 x 185.5 x 55.9 in) |
| Weight | 386 kg (849 lb) |
