Extra-Large Format, Uninterrupted Production

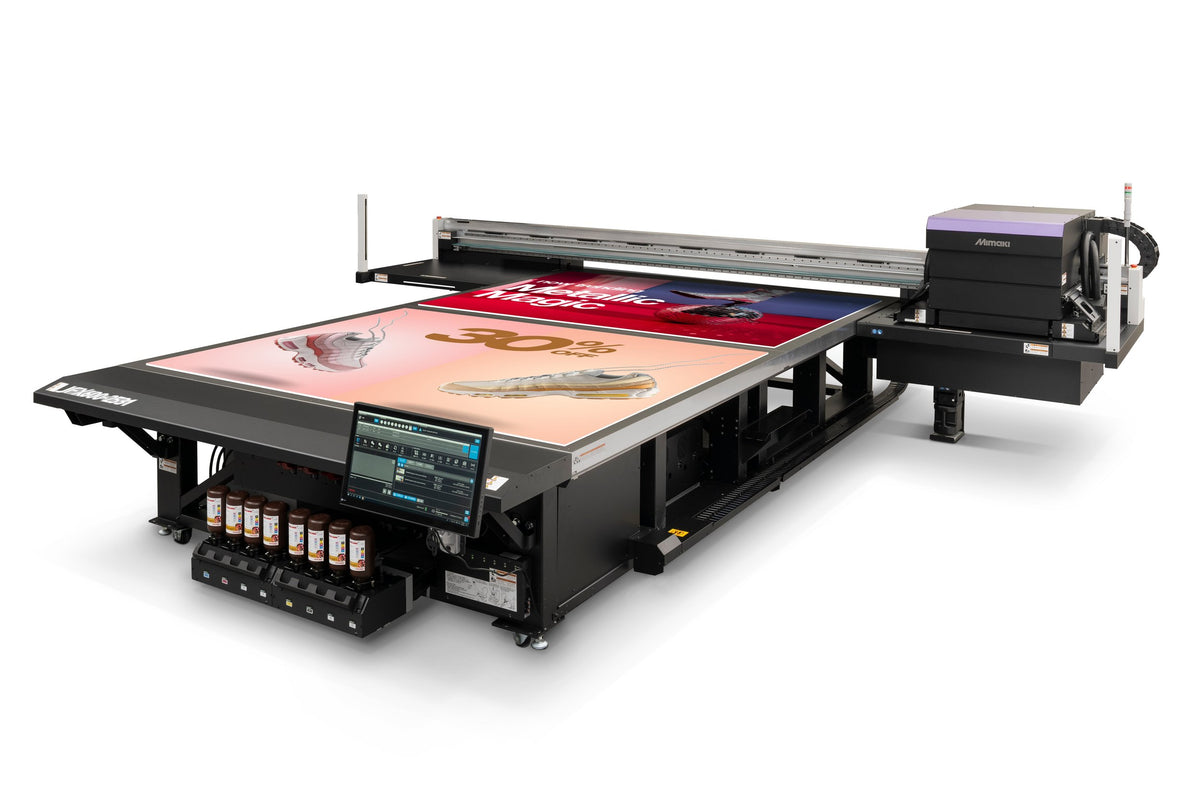

The JFX600-2531 takes the JFX600's proven print engine and scales it up to a 2.5 x 3.1 m (8' x 10') bed — 2.4 times the print area of the JFX600-2513 — while keeping full-board printing under 60 seconds. It's built for high-volume packaging and POP work as well as architectural substrates like glass, partitions, and plywood up to 3 meters long.
The extra length isn't just about bigger boards: the JFX600-2531 introduces the Toggle Print Function, letting operators load and unload one side of the table while the other side keeps printing — effectively eliminating idle time between jobs.
Engineered for Continuous Throughput
Every feature here is aimed at keeping the print head moving and the table full.
Toggle Print Function
Set print origins at two locations — front and rear — so substrate swaps happen on one side while the other keeps printing.
16 Staggered Piezo Heads
Print speeds up to 2,152 sq ft/hr (200 m²/h) — equivalent to more than a board a minute in production mode.
9 Independent Vacuum Zones
Suction is applied only where media sits, so there's no need to fill gaps in the vacuum area when setting material — improving setup efficiency across the extra-large bed.
Low-VOC Inks, IoT-Ready Production
The JFX600-2531 runs on GREENGUARD Gold certified UV-LED inks, and its production workflow is IoT-ready with PICT remote monitoring — giving shops visibility into machine status and ink levels without walking the floor.
- GREENGUARD Gold certified, low-VOC UV-LED inks
- PICT remote monitoring for production status and ink levels
- On-machine job and maintenance control via Mimaki Print Controller
Ink Types
LH-100 — 4-Color Set
Cyan, Magenta, Yellow, Black. Rigid UV ink for standard signage and packaging work at maximum speed.
LH-100 — 6-Color + White/Clear/Primer
Adds Light Cyan and Light Magenta for richer color expression, plus White, Clear, and Primer for opacity, gloss, and adhesion on architectural substrates.
Six-color capability with primer support lets the JFX600-2531 move between glass, acrylic, metal, wood, and flexible media on the same extra-large table.
Mimaki Print Controller
On-Machine Job & Maintenance Control
The JFX600-2531's on-board touch screen (MPC) puts job queuing and maintenance controls at the machine, so operators can manage production without leaving the printer.
Full Specifications
Print & Ink
| Print Head | 16 staggered on-demand piezo heads |
| Print Resolution | 600 / 1200 dpi |
| Print Speed (4 Color Mode) | 2,152 ft²/hr (200 m²/hr) |
| Ink Type | Rigid: LH-100 (C,M,Y,K,Lc,Lm,W,Cl) — Flexible: LUS-150, LUS-120. Jettable primer available. |
| Ink Package | 1L bottle |
Media & Print Area
| Max. Print Area | 2,500 x 3,100 mm (98.43 x 122.05 in) |
| Max. Media Size | 2,550 x 3,150 mm |
| Vacuum Zones | 9 zones (4 front, 4 back, 1 center) |
| Max. Media Thickness | 60 mm (2.36 in) |
| Max. Media Weight | 50 kg/m² |
Power & Environment
| Power Supply | Single-phase AC200–240V ±10%, 50/60Hz ±1Hz, 24A x3 |
| Power Consumption | Less than 4.8kWhr x3 |
| Operating Temp. | 15–30°C (68–86°F) |
| Operating Humidity | 35–65% Rh (non-condensing) |
Interface, Certifications & Dimensions
| Interface | Ethernet 10,000 BASE-T |
| Certifications | UL62368, CE Marking (EMC/Machinery), RoHS/REACH/EAC/RCM, KC, UKCA |
| Dimensions (W×D×H) | 5,400 × 4,850 × 1,700 mm (213 x 191 x 67 in) |
| Weight | 1,600 kg (3,527 lb) |
