Productivity and Versatility at an Entry-Level Price

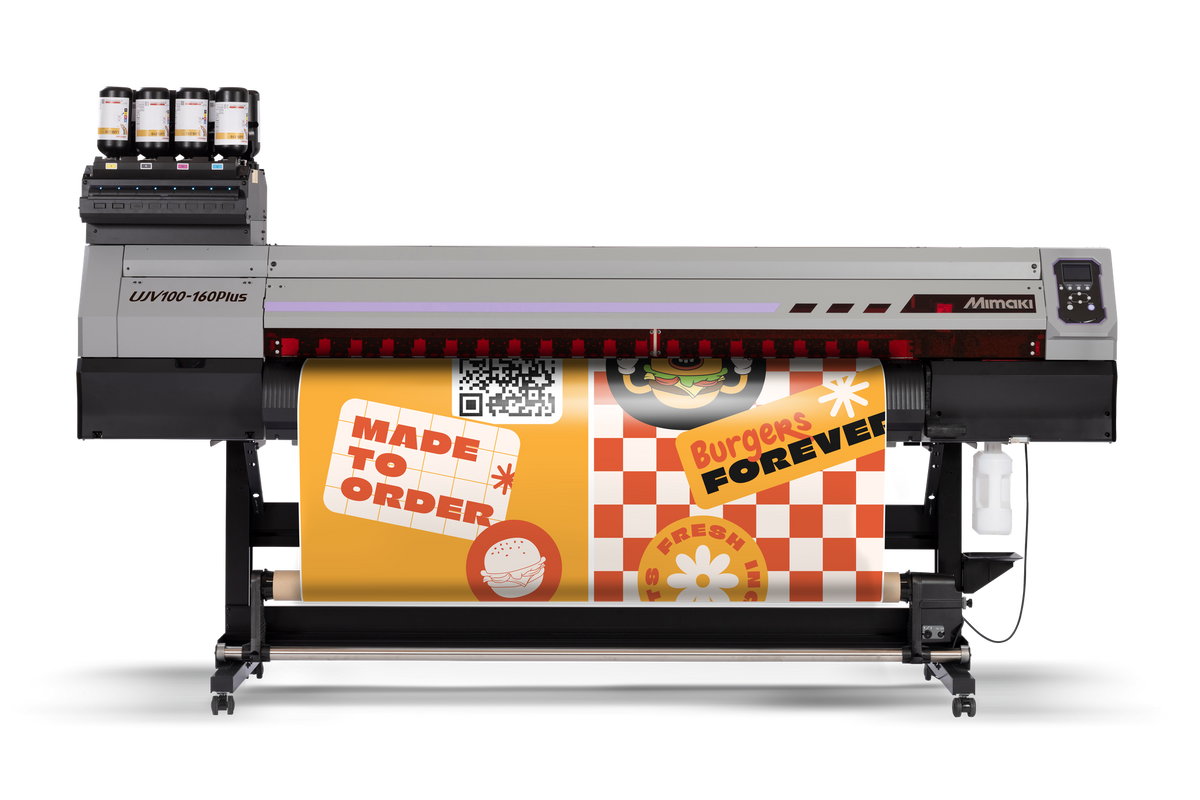

The UJV100-160Plus is a competitively priced UV-LED roll-based printer with productivity features usually found in higher-end models. Its instant-dry UV-LED inks adhere to paper, PET film, fabric, vinyl, and more, making post-print handling and finishing effortless — and because UV-LED lamps cure ink instantly, print speed and efficiency both go up.
It's built as the definitive entry-level model for sustainable sign and graphics production: low running costs, versatile output, and easy printing for shops of any experience level.
Lower Running Costs, More Application Range
Three features set the Plus apart from the standard UJV100-160 — all aimed at cost and versatility.
Ultra-Low Power Consumption
Maximum power draw of just 0.5kW — nearly 80% less than eco-solvent and latex printers on the market, cutting both energy bills and CO2 output.
Up to 50% Ink Savings
Reduce ink consumption while maintaining the original design's color balance — adjustable in RasterLink7 with no specialized color knowledge needed.
3-Layer Pull-Back Printing
A pull-back function rewinds the printed substrate for follow-up printing, supporting 3-layer builds regardless of ink color order.
GREENGUARD Gold Certified UV Inks
The UJV100-160Plus runs on LUS-170/190/210 UV-curable inks in 1-liter bottles — low VOC, safe for indoor use in spaces like schools and hospitals, and durable outdoors for up to 5 years.
- GREENGUARD Gold certified UV-curable inks
- Safe for indoor installation environments
- Outdoor durability up to 5 years
Ink Types
LUS-170 — Standard 6-Color
Cyan, Magenta, Yellow, Black, White, and Clear in 1-liter bottles for multi-layer and backlit applications.
LUS-190 / LUS-210 Options
Additional ink formulations for shops needing extended color options or alternate cost/performance profiles.
All three ink families share the same GREENGUARD Gold, low-VOC standard, so shops can choose based on application rather than compromise on safety.
RasterLink7 & Direct Cutter Output
Seamless Print & Cut Linkage
RasterLink7 outputs cut data directly to Mimaki's CG-AR series cutting plotters, eliminating the extra step of exporting through separate cutting software and improving operator efficiency.
Full Specifications
Print & Ink
| Print Head | Two staggered on-demand piezo print heads |
| Print Resolution | 360 / 720 / 900 / 1200 dpi |
| Print Speed (4 Color Mode) | 146.3 sq ft/hr (13.6 m²/hr) |
| Ink Type | LUS-170 / LUS-190 / LUS-210 (C, M, Y, K, White, Clear) |
| Ink Package | 1L bottle |
Media & Print Area
| Max. Print Width | 63.4 in (1,610 mm) |
| Max. Media Width | 63.8 in (1,620 mm) |
| Media Thickness | Up to 0.03 in (1.0 mm) |
| Rolled Media Weight | One roll: max. 45 kg (99.2 lb) or less |
Power & Environment
| Power Supply | Single-phase AC100–120V ±10%/12A, AC200–240V ±10%/8A, 50/60Hz ±1Hz |
| Power Consumption | Max. 500W (operating), 4.5W (sleep) |
| Operating Temp. | 20–30°C (68–86°F) |
| Operating Humidity | 35–65% (non-condensing) |
Interface, Certifications & Dimensions
| Interface | Ethernet 1000BASE-T (recommended) / USB 2.0 Hi-speed |
| Certifications | VCCI Class A, FCC Class A, UL62368-1 Conform ETL, CE Marking (EMC/Machinery/RoHS/LVD), CB, RCM, EAC |
| Dimensions (W×D×H) | 2,775 × 700 × 1,475 mm (109.3 x 27.6 x 58.1 in) |
| Weight | 167 kg (368.2 lb) |
