Flagship Quality Meets UV-LED Printing

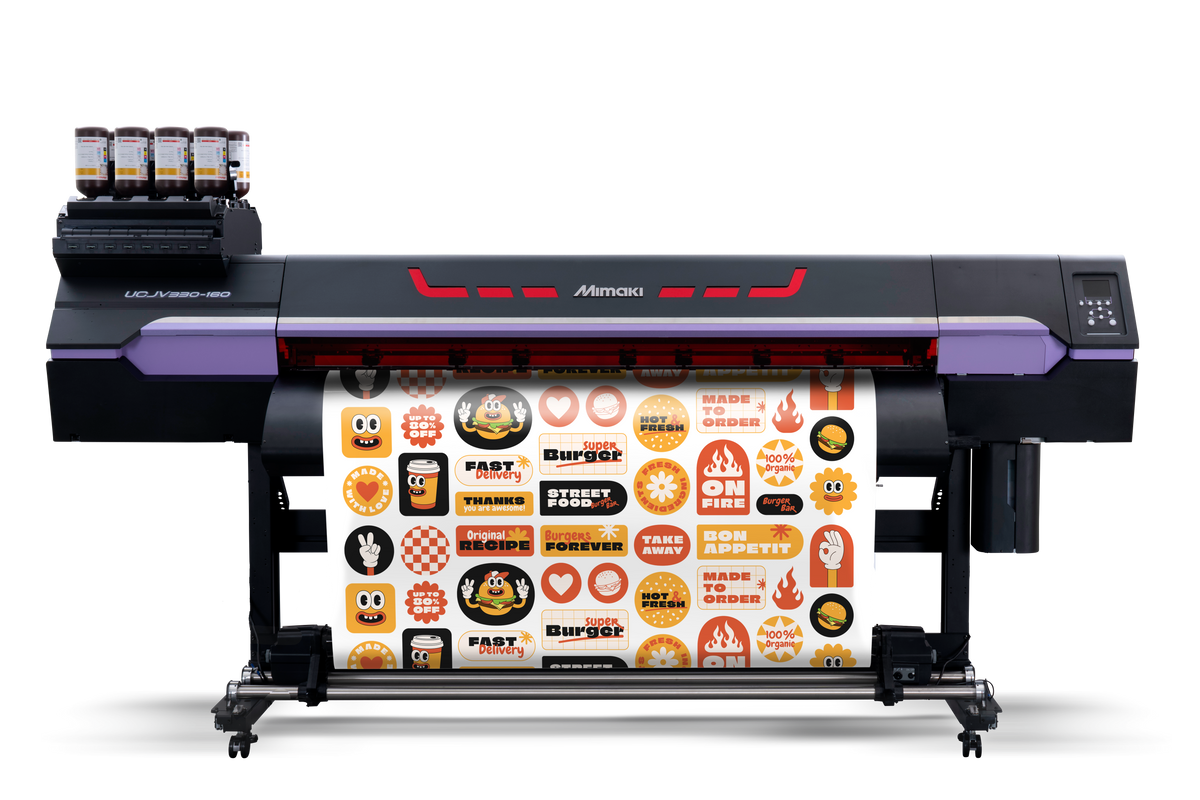

The UCJV330 Series combines the high productivity and image quality of Mimaki's flagship 330 Series with UV-LED printing technology — and it's the company's first roll-to-roll product to support 2.5D printing. Patent-pending ink ejection technology reduces color irregularities in high-density areas, even in high-speed output mode.
Production speeds reach up to 301 sq ft/hr in a four-color setup, or 194 sq ft/hr with White and/or Clear ink, giving print shops impressive turnaround times without sacrificing the image quality Mimaki's 330 platform is known for.
UV Speed, Flagship-Grade Image Quality
The 330 print engine adapted for UV-LED curing, with new dimensional printing capability on top.
High-Density 330 Print Heads
A new banding-reduction system delivers smoother image quality with minimum 4pl graininess, even at high output speeds.
5-Layer & 2.5D Printing
Clear ink and watermark printing expand creative options, with stretchable ink for UV vehicle wraps that skips the usual outgassing wait before lamination.
Instant-Cure Post-Print Cutting
UV-curable ink needs no drying time, so the post-print cut function moves straight into finishing — with an optional XY slitter and 3-roll media changer.
Standard 6-Color Ink, Expanded Design Options
The UCJV330 Series ships with a standard CMYKLcLm plus White and Clear LUS-170 ink set, printing onto translucent, transparent, white, or colored base media, PET, PU and other resin films, and cloth. Clear ink unlocks high-value-added deliverables that a standard 4-color set can't produce.
- CMYKLcLm + White + Clear LUS-170 ink set
- Supports translucent, transparent, and colored films
- Up to 5-layer printing for high-value output
Ink Types
LUS-170 — Standard 6-Color
Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, plus White and Clear for opacity and gloss effects.
Clear Ink — 2.5D & Watermark
Used for layered texture builds and watermark printing, a capability unique to Mimaki in this roll-to-roll class.
Clear ink is the through-line between the UCJV330's core color set and its dimensional 2.5D and watermark printing modes.
PICT Remote Monitoring
Visualize Operations From Anywhere
Mimaki PICT, a cloud-based printer status monitoring tool, lets operators visualize the operational status and performance of the UCJV330 from a PC or mobile device, even remotely.
Full Specifications
Print & Ink
| Print Head | Two staggered on-demand piezo print heads |
| Print Resolution | 600 / 1200 / 1800 dpi |
| Print Speed (4 Color Mode) | Up to 430.5 sq ft/hr (40 m²/hr) |
| Ink Type | C, M, Y, K, Lc, Lm, White, Clear |
| Ink Package | 1L bottle |
Media & Print Area
| Max. Print Width | 63.4 in (1,610 mm) |
| Max. Media Width | 63.8 in (1,620 mm) |
| Media Thickness | Up to 0.03 in (1.0 mm) |
| Rolled Media Weight | Max. 45 kg (99.2 lb) or less |
Power & Environment
| Power Supply | Single-phase AC100–120V ±10%/12A or AC200–240V ±10%/6A, 50/60Hz ±1Hz |
| Power Consumption | Max. 1,440W or less |
| Operating Temp. | 20–30°C (68–86°F) |
| Operating Humidity | 35–65% |
Interface, Certifications & Dimensions
| Interface | Ethernet 1000BASE-T (recommended) / USB 2.0 Hi-speed |
| Certifications | VCCI Class A, FCC Class A, ETL IEC 62368-1, CE Marking (EMC/LVD/Machinery/RoHS), CB, REACH, Energy Star, RCM, KC, UKCA |
| Dimensions (W×D×H) | 2,890 × 800 × 1,480 mm (113.8 x 31.5 x 58.3 in) |
| Weight | 227 kg (500.4 lb) |
