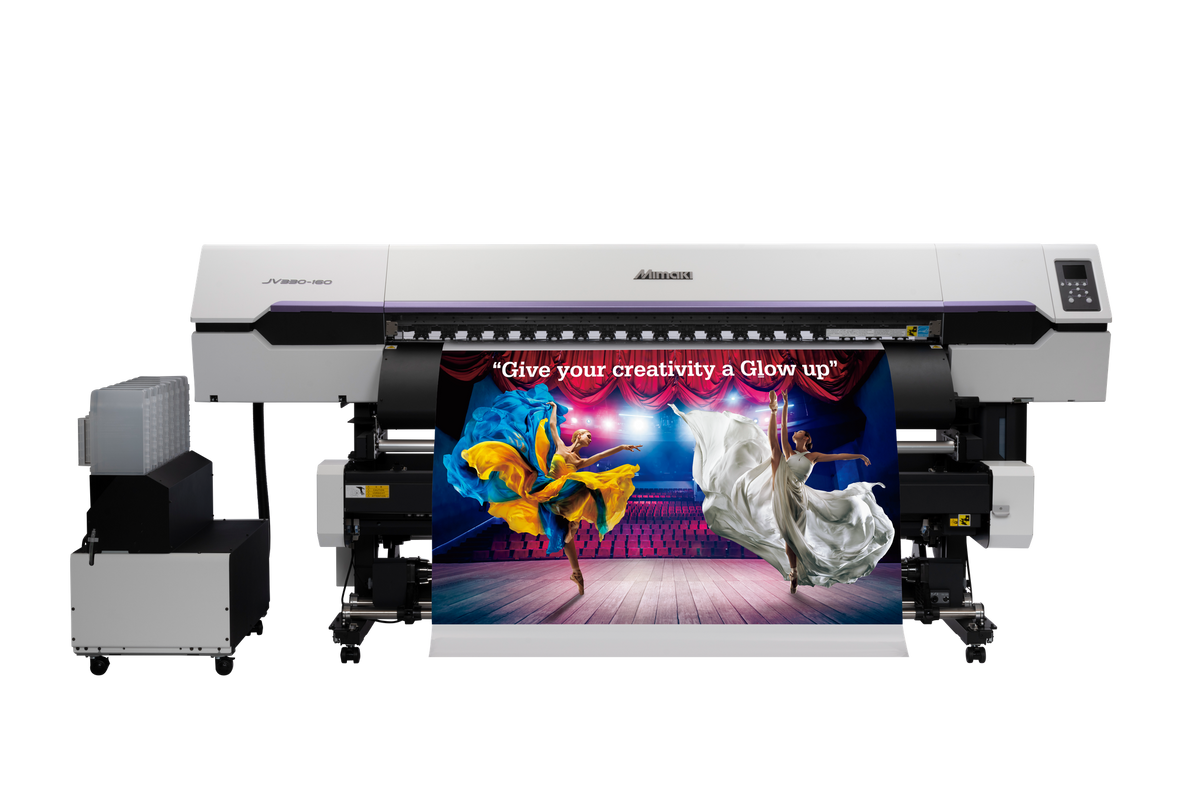

Mid-to-High-End Eco-Solvent, Ground-Up Rigidity
The JV330 Series adds a mid-to-high-end print-only option to Mimaki's eco-solvent lineup, sitting above the entry-level 100 Series and standard 300 Series. The chassis was reviewed from the ground up for rigidity, improving droplet placement accuracy up to 650% over conventional Mimaki products through innovative waveform control technology.
Dual staggered printheads with 6,400 nozzles reach speeds up to 1,076.4 sq ft/hr, and a new "Deep Color Natural" input profile enhances skin tones, red saturation, neutral grays, and shadow depth for photo-quality output at production speed.
Production Speed, Refined Color
Engineered for high-demand commercial printing without a cutter attached.
Mimaki Weaving Dot Technology
Compensates for head misalignment and suppresses visible banding, working alongside 3-picoliter droplets for ultra-precise placement.
Up to 9-Color SS21 Ink
CMYK plus Light Cyan, Light Magenta, Light Black, Orange, and White — the "Deep Color Natural" profile sharpens skin tones and shadow depth.
3-Way Media Changer
Multiple media roll handling plus an optional integrated XY slitter reduce manual roll swaps and cutting steps.
GREENGUARD Gold, 3M™ MCS™ Compatible
SS21 eco-solvent ink is GREENGUARD Gold certified for safe indoor applications like schools and healthcare facilities. Combined with SS21 or BS4 ink, JV330 output qualifies for the 3M™ MCS™ Warranty Program — the industry's most comprehensive finished-graphic warranty.
- GREENGUARD Gold certified SS21 ink
- 3M™ MCS™ Warranty Program compatible
- Best-in-industry weather resistance
Ink Types
SS21 — Up to 9-Color
Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black, Orange, and White for extended gamut and photo-quality output.
White Ink Option
Adds opacity for printing on colored or transparent films, expanding into backlit and window-graphic applications.
The full 9-color gamut with White ink positions the JV330 for both everyday outdoor signage and premium photo-quality work.
Mimaki Remote Access
Monitor Jobs From Anywhere
Mimaki Remote Access (MRA) enables wireless printer operations, letting operators check job status and printer health without staying at the machine throughout long production runs.
Full Specifications
Print & Ink
| Print Head | On-demand piezo head (2 staggered printheads) |
| Print Resolution | 600 / 800 / 900 / 1200 dpi |
| Print Speed (4 Color Mode) | Up to 1,076.4 sq ft/hr (100 m²/h) |
| Ink Type | SS21 (C, M, Y, K, Lc, Lm, Lk, Or, White) / BS4 (C, M, Y, K) |
| Ink Package | 2L ink pack |
Media & Print Area
| Max. Print Width | 53.5 in (1,360 mm) / 63.4 in (1,610 mm) |
| Max. Media Width | 53.9 in (1,370 mm) / 63.8 in (1,620 mm) |
| Media Thickness | Up to 0.04 in (1.0 mm) |
| Rolled Media Weight | One roll: max. 45 kg (99.2 lb) — Three rolls: total 90 kg (198.4 lb) |
Power & Environment
| Power Supply | Single-phase AC100–120/200–240V ±10%, 50/60Hz ±1Hz × 2 |
| Power Consumption | Max. 1,440W or less ×2 / Min. 4.5W (sleep) |
| Operating Temp. | 20–30°C (68–86°F) |
| Operating Humidity | 35–65% Rh (non-condensing) |
Interface, Certifications & Dimensions
| Interface | Ethernet 1000BASE-T (recommended) / USB 2.0 Hi-speed |
| Certifications | VCCI Class A, FCC Class A, ETL IEC 62368-1, CE Marking (EMC/LVD/Machinery/RoHS), CB, REACH, Energy Star, RCM, EAC, KC, UKCA, GREENGUARD Gold (Cert. No. 67174-420) |
| Dimensions (W×D×H) | 2,920 × 1,215 × 1,305 mm / 3,170 × 1,215 × 1,305 mm |
| Weight | 358 kg (789.2 lb) |
