Professional Cutting, Made Easy

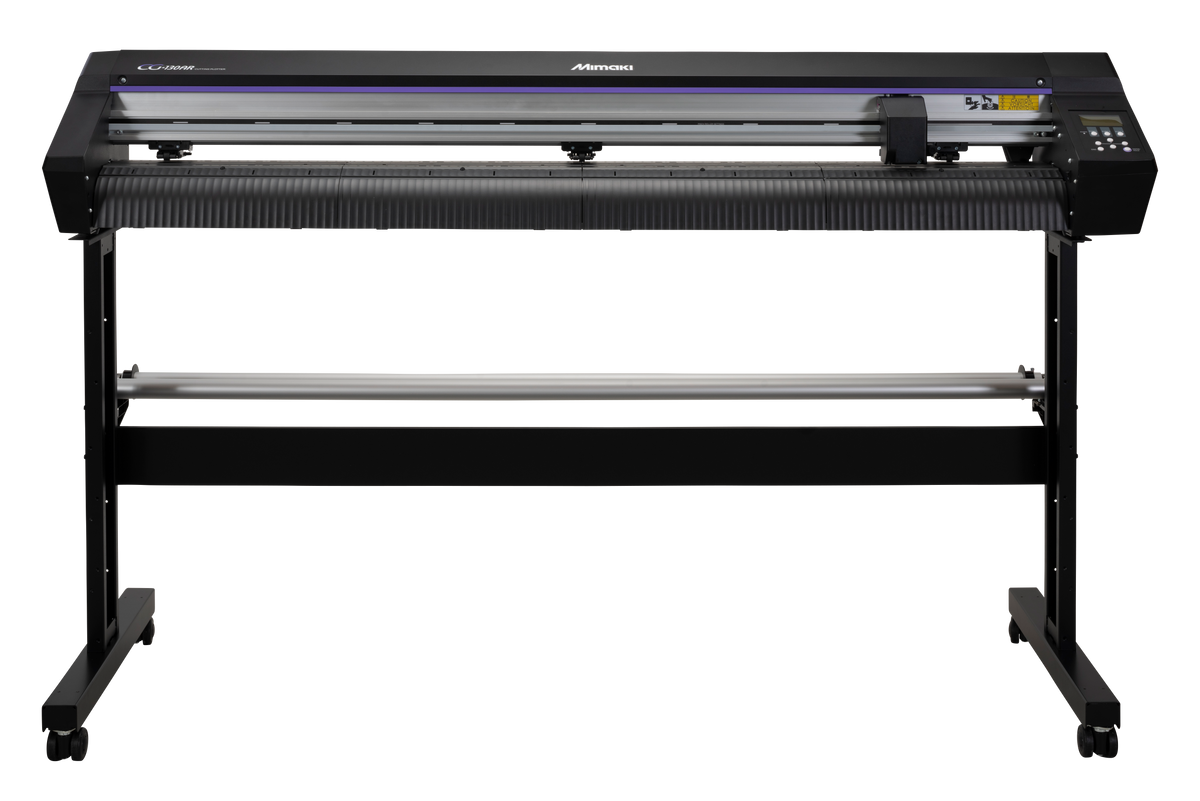

The CG-AR Series is Mimaki's entry-model cutting plotter, offering repeatable, fast cutting on a wide range of media. It's a fit for t-shirt transfers, decals, window lettering, cardstock projects, and more, and it's compatible with both Windows® and macOS® computers — a good match for hobbyists and production businesses alike. Available in 29" (CG-60AR) and 61" (CG-130AR) widths.
Continuous crop mark detection drives accurate contour cutting, while a half-cut function and three selectable job speeds keep handling simple whether media loads from the front or back of the machine.
Built for Accuracy at Any Speed
Three features keep contour cuts registered and handling simple.
Continuous Mark Detection
Contour cutting registration stays accurate across long runs, so printed graphics line up precisely with their cut lines.
Half Cut & Flexible Loading
A half-cut function simplifies handling delicate materials, with media loadable from either the front or back of the machine.
Remote Event Notification
Get notified when a job finishes or needs attention, without standing at the machine.
FineCut9, SimplePop & More
The CG-AR Series ships with FineCut9 and SimplePop software standard, giving hobbyists and production shops a complete cut workflow out of the box. The CG60AR & Stand Craft & Packaging Bundle adds Sure Cuts A Lot for even broader design compatibility.
- FineCut9 included standard
- SimplePop included standard
- Sure Cuts A Lot included with Craft & Packaging Bundle
Blade & Cutter Types
General-Purpose Blades
Eccentric cutter, blade for small character work, and ball point pen — for everyday contour cutting and drafting.
Specialty Blades
Blades for reflective sheet, fluorescent sheet, and low-pressure PVC, plus a heavy paper cutter and creasing tool.
Swapping blades rather than machines lets one CG-AR handle everything from window lettering to reflective safety signage.
Perfect Print & Cut Partner
ID Cut & Zero Margin Mark
ID Cut and Zero Margin Mark automate registration between a Mimaki printer's output and the CG-AR's cutting pass, so print-and-cut jobs stay aligned without manual mark placement.
Full Specifications
Cutting Head & Mechanism
| Cutter Types | Eccentric cutter, blade for small character, blade for reflective sheet, blade for fluorescent sheet, blade for low-pressure PVC, ball point pen, cutter for heavy paper, creasing tool |
| Command | MGL-IIc, MGL-Ic1 |
| Mechanical Resolution | X: 2.5 µm — Y: 5 µm |
| Program Steps | 25 µm or 10 µm (MGL-IIc); 100 µm, 50 µm (MGL-Ic1) |
| Downforce Pressure | Cutter: 10–550g — Pen: 10–150g — Creasing tool: 10–550g |
Media & Cutting Area
| Maximum Media Width | CG-60AR: 29.1 in (740 mm) — CG-130AR: 61 in (1,550 mm) |
| Cutting Width | CG-60AR: 23.9 in (600 mm) — CG-130AR: 53.9 in (1,370 mm) |
| Maximum Media Thickness | Recommended up to 0.01 in (0.25 mm) incl. laminate and liner; up to 0.04 in (1 mm) max (results may vary) |
| Repeatability | ±0.2 mm / 2 m |
Power & Environment
| Power Supply | AC 100–240V, 1A, 50/60Hz |
| Power Consumption | 168W or less / 228W or less / 228W or less |
| Operating Temp. | 41–95°F (5–35°C) |
| Operating Humidity | 35–75% Rh (non-condensing) |
Interface & Dimensions
| Interface | USB, RS-232C, Ethernet |
| Receive Buffer | 27MB standard, 17MB when sorting |
| Dimensions | CG-60AR: 1,010 x 355 x 355 mm — CG-60AR w/ stand: 1,010 x 580 x 1,160 mm — CG-130AR: 1,810 x 580 x 1,160 mm |
| Weight | CG-60AR: 17 kg (37.5 lb) — CG-60AR w/ stand: 27 kg (59.5 lb) — CG-130AR: 43 kg (94.8 lb) |
