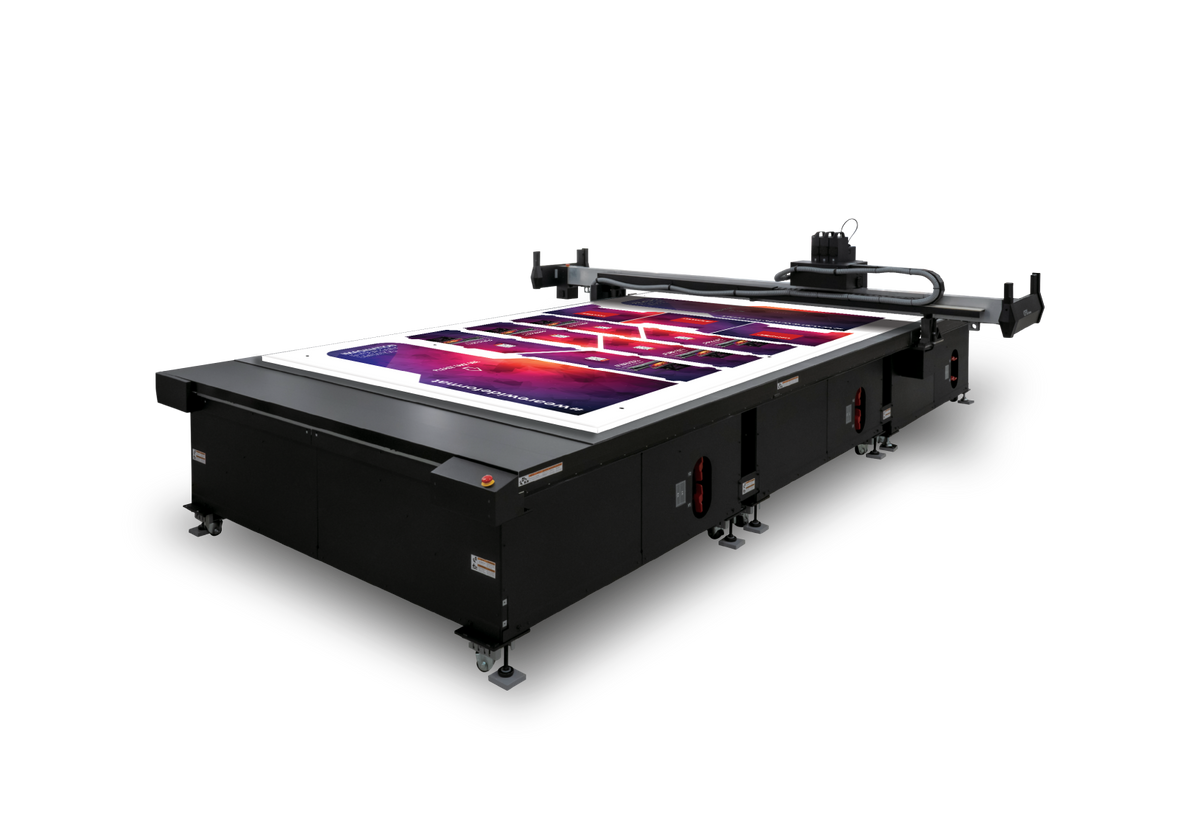

The Fastest, Most Productive Flatbed Cutter Mimaki Has Built
The CFX Series is Mimaki's latest and fastest high-speed flatbed cutting plotter with routing support. Class-leading 1,000 mm/s movement speed and four simultaneous-carry tool stations keep production moving without constant tool changes, while up to 30kg of cutting pressure handles materials up to 2.31" thick.
Available in three field-expandable table sizes — CFX-2513, CFX-2531, and CFX-2550 — the CFX Series scales from oversized sheets to long-run industrial production, with camera-guided backside cutting adding accuracy other flatbed cutters can't match.
Built to Scale With Production
Four tool stations and expandable tables keep the CFX ahead of growing demand.
Four Simultaneous Tool Stations
Carry four tools at once and switch between them mid-job, cutting setup time between different cut types.
Camera-Guided Backside Cutting
Accurate cutting and creasing from the reverse side of the material, expanding what the CFX can finish in a single pass.
Field-Expandable Tables
Choose 8.3' wide tables in 4.25', 10.5', or 16.5' lengths, so the bed grows with production needs rather than requiring a new machine.
Precision at Production Speed
Surface tracking keeps V-cut depth accurate even across uneven material, while static positioning accuracy of ±0.1mm and repeatability of ±0.03mm hold up at the CFX's full 1,000 mm/s movement speed.
- Surface tracking for accurate V-cut depth
- ±0.03mm repeatability at full speed
- Camera-guided backside cutting mode
Cutter Types
Pen / Swivel & Tangential
Standard and high-pressure tangential cutting for sign, display, and packaging materials.
Reciprocating & Routing
Reciprocating blade action and full routing capability for rigid boards and industrial substrates.
Four tool stations mean the CFX can carry all four cutter types at once, switching mid-job without a manual tool change.
Built on a Proven Cutting Workflow
Ethernet & RS-232C Connectivity
The CFX Series runs on a FineCut9 base workflow with Ethernet and RS-232C communication, keeping it compatible with existing Mimaki print-and-cut setups.
Full Specifications
Covers CFX-2513, CFX-2531, and CFX-2550 models
Cutting Head & Mechanism
| Maximum Movement Speed | 3.3 ft/s (1,000 mm/s) |
| Maximum Acceleration | 0.7 G |
| Maximum Cut Pressure | 66 lb (30 kg) |
| Cutter Types | Pen/swivel, tangential, high-pressure tangential, reciprocating, routing |
| Static Accuracy | Repeatability ±0.03mm — Position accuracy ±0.1mm — Squareness ±0.5mm/1000mm — Origin repeatability ±0.15mm |
Media & Cutting Area
| Effective Plotting Area | CFX-2513: 100 x 51 in (2,450 x 1,300 mm) — CFX-2531: 100 x 126 in (2,450 x 3,190 mm) — CFX-2550: 100 x 200 in (2,450 x 5,080 mm) |
| Maximum Media Width | CFX-2513: 101 x 74.4 in (2,570 x 1,890 mm) — CFX-2531: 101 x 149 in (2,570 x 3,780 mm) — CFX-2550: 101 x 223 in (2,570 x 5,670 mm) |
| Maximum Media Thickness | Up to 2.13 in (54 mm), varies by tool |
| Maximum Media Weight | 10.24 lb/ft² (50 kg/m² or less) |
Power & Environment
| Power Supply | 200–240V single phase, 50/60Hz, 12VA or less |
| Power Consumption | 3,000W |
| Operating Temp. | 41–86°F |
| Operating Humidity | 35–75% Rh (non-condensing); accuracy guaranteed at 68–77°F, 35–65% Rh |
Interface, Certifications & Dimensions
| Interface | RS-232C, Ethernet |
| Certifications | VCCI Class A, FCC Class A, CE Marking, CB Report (EN62368), UL62368-1, Machinery Directive, RoHS, REACH |
| Dimensions | CFX-2513: 159.5 x 84.6 x 49.2 in (4,050 x 2,150 x 1,250 mm) — CFX-2531: 159.5 x 159.5 x 49.2 in (4,050 x 4,050 x 1,250 mm) — CFX-2550: 159.5 x 234.3 x 49.2 in (4,050 x 5,950 x 1,250 mm) |
| Weight | CFX-2513: 838 lb (380 kg) — CFX-2531: 1,279 lb (580 kg) — CFX-2550: 1,720 lb (780 kg) |
