Rapidly Bringing Ideas to Shape

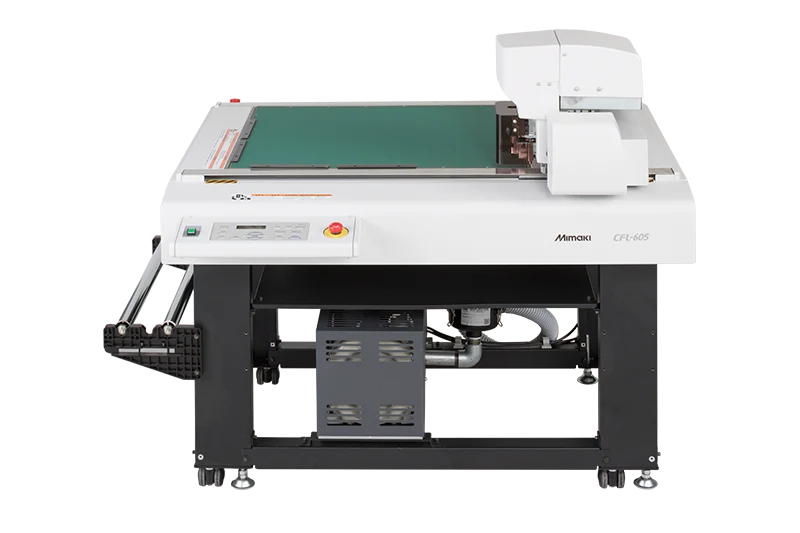

The CFL-605RT is a compact flatbed cutting plotter built to support immediate finishing of packaging and prototypes. Paired with a Mimaki UV-LED tabletop flatbed printer and packaging design software, it gives small businesses an economical way to work across a wide range of applications.
A 20" x 24" cutting area, vacuum hold-down, and cut/crease-without-changing-tools workflow make the CFL-605RT well suited to shops producing signs, banners, packaging prototypes, and similar short-run goods.
One Bed, Cut and Crease
Built for fast turnaround on packaging and short-run prototypes.
Cut and Crease, No Tool Change
Reciprocating, tangential, and eccentric cutting functions share the bed with a creasing roller, so packaging jobs move from cut to crease without swapping heads.
Vacuum Hold-Down
A vacuum system holds material securely in place during cutting, keeping registration accurate on thinner or lightweight media.
On-Demand Package Production
Part of a total solution for on-demand goods and packaging, cutting media up to 0.39" (10mm) thick.
Continuous Mark Detection & Half Cut
Continuous mark detection keeps contour cutting registered to printed graphics throughout a job, while the half-cut function lets the CFL-605RT crease and partially cut without switching tools — useful for folding cartons and package prototypes.
- Continuous mark detection for contour accuracy
- Half-cut function for creasing and folding
- Vacuum system for stable material hold
Cutter Types
Pen/Swivel & Tangential
High-pressure tangential cutting for signage, decals, and packaging stock.
Reciprocating
Reciprocating blade action for thicker or denser packaging and prototype materials.
Cutting and creasing on the same bed keeps packaging prototypes moving without a second machine.
Ready to Cut Out of the Box
Complete Cutting Workflow
FineCut9 software ships standard with the CFL-605RT, giving shops a complete cutting workflow without needing to source separate design or cut-path software.
Full Specifications
Cutting Head & Mechanism
| Cutter Types | Pen/swivel, high-pressure tangential, reciprocating |
| Maximum Cut Speed | 16.5 in/s (423.0 mm/s) |
| Maximum Cut Pressure | Eccentric: 1,000g — Tangential/Creasing: 1,500g |
| Maximum Media Thickness | T/TD: 1 in — RT/RC: 0.8 in (RC: 10mm / T: 2mm) |
Media & Cutting Area
| Effective Plotting Area | 610 x 510 mm |
| Maximum Media Width | 24.8 x 20.8 in (630 x 530 mm) |
Power & Environment
| Power Supply | Single-phase AC100–120V / 220–240V, 145 VA or less |
| Power Consumption | 500W or less |
| Operating Temp. | 41–95°F |
| Operating Humidity | 35–75% Rh (non-condensing) |
Interface, Certifications & Dimensions
| Interface | USB 2.0, RS-232C, Ethernet |
| Certifications | VCCI Class A, FCC Class A, ETL UL 60950-1, CE Marking (Machinery/RoHS), CB, REACH |
| Dimensions (W×D×H) | 51.97 x 41.14 x 43.30 in (132 x 104.5 x 110 cm) |
| Weight | 240.3 lb (109 kg) |
