Flatbed Cutting Without Dies

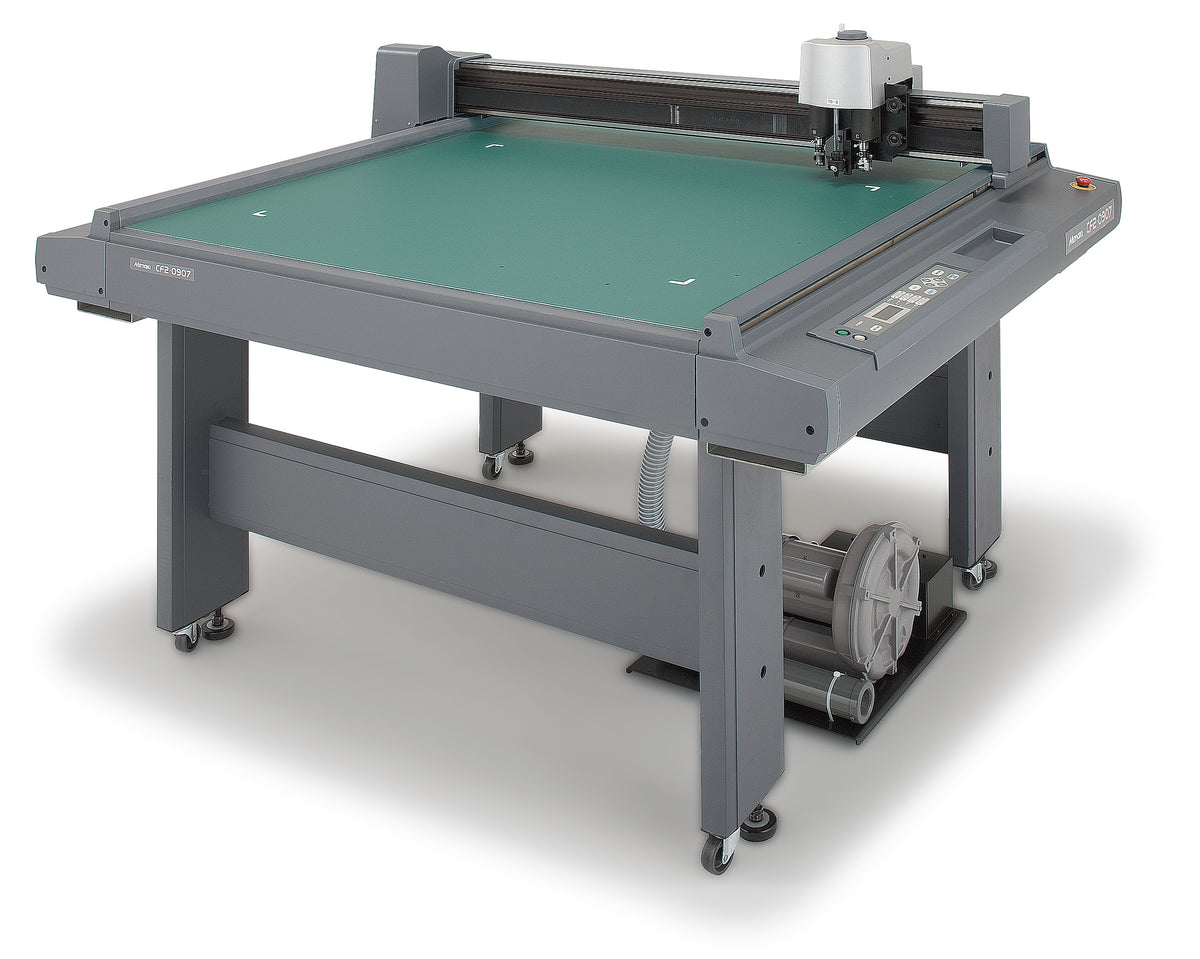

The CF2 Series is a flatbed cutting plotter capable of cutting a wide range of media with high accuracy and no dies required. Two cutting heads support a variety of blades — tangential, reciprocal, marking gauge roller, and swivel — so one machine adapts to soft film, rigid board, or industrial-grade rubber and foam.
Available in three bed sizes — CF2-0912, CF2-1215, and CF2-1218 — the CF2 Series suits everything from POP displays and packaging prototypes to gaskets and printed circuit board components, and pairs naturally with a Mimaki inkjet printer for a screen-less, die-less, on-demand production system.
Precision Without Custom Tooling
Motor-controlled blade steering and optical registration keep cuts accurate job after job.
Tangential & Reciprocal Cutting
Motor-controlled blade steering enables precise die-cutting and half-cutting; the reciprocal head adds up-and-down blade movement (7,000 strokes/minute) for thicker, tougher materials.
Optical Registration
A mark sensor reads printed registration marks for accurate contour cutting of pre-printed media.
Repeated & Back Cutting
Repeated cutting passes handle thick material in stages, while back cutting via mark chips keeps the front surface finish clean.
Cutting Conditions, Saved and Repeatable
Press correction ensures complete cuts as blade sharpness changes, and cutting conditions — pressure, speed, offsets, and more — can be registered and recalled by tool, so switching jobs doesn't mean re-tuning the machine each time.
- Press correction maintains consistent cut depth
- Multiple registered cutting condition presets
- Two tools mounted simultaneously for tool-free job switching
Cutting Head & Blade Types
TD / RC Toolset
Tangential and reciprocal heads for commercial production — decorated cases, displays, POP, coated board, and corrugated materials.
T / TF / RT Toolset
Built for industrial materials: rubber, resin, plastic, laminated pieces, foam, and FPC board.
Swapping toolsets rather than machines lets a single CF2 handle both commercial sign work and industrial prototyping.
Pairs With Any Mimaki Printer
On-Demand, Multi-Type Small-Lot Production
Combined with a Mimaki inkjet printer in a production workflow, the CF2 Series forms a screen-less, die-less system — cutting printed media on demand rather than waiting on custom tooling or die charges.
Full Specifications
Covers CF2-0912, CF2-1215, and CF2-1218 models
Cutting Head & Mechanism
| Driving Method | X/Y/Z/Θ 4-axis DC servo motor |
| Cutter Types | Tangential cutter, reciprocal cutter (7,000 strokes/min), marking gauge roller, swivel cutter |
| Maximum Cutting Speed | 19.7 in/s (50 cm/s) |
| Maximum Media Thickness | T/TD toolset: up to 1 in (25 mm) — RT/RC toolset: up to 0.8 in (20 mm) |
Media & Cutting Area
| Bed Size (CF2-0912) | 35.4 x 47.2 in (900 x 1,200 mm) |
| Bed Size (CF2-1215) | 47.2 x 59 in (1,200 x 1,500 mm) |
| Bed Size (CF2-1218) | 47.2 x 70.8 in (1,200 x 1,800 mm) |
| Mark Sensor | Optical registration for contour cutting of printed media |
Power & Environment
| Power Supply | AC100–240V, 50/60Hz (cutter only) |
| Interface | RS-232C (Ethernet optional) |
| Operating Temp. | 41–104°F (5–40°C) |
| Operating Humidity | 35–75% Rh (non-condensing) |
Dimensions & Weight
| Dimensions (CF2-0912) | 69.3 x 63 x 43.3 in (176 x 160 x 110 cm) |
| Weight (CF2-0912) | 308 lb (140 kg), cutter only |
| CF2-1215 / CF2-1218 | Dimensions and weight scale with bed size — contact Mimaki for exact figures |
