Print Higher, Print Deeper, Print Smarter

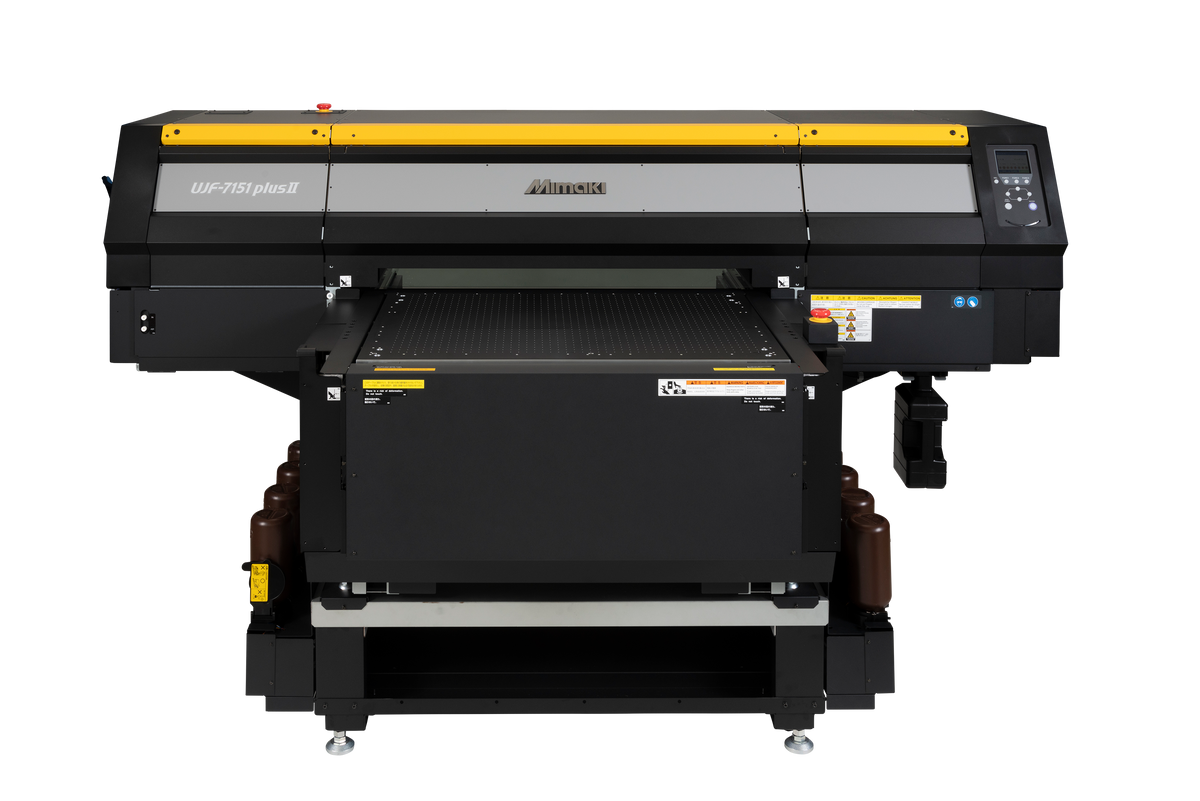

The UJF-7151 plusII e brings next-generation precision and texture control to industrial and promotional printing. Built for superior surface imaging, it enhances print depth, accuracy, and efficiency with advanced ink layering, curved-surface printing, and faster primer performance.
Delivering output up to 1,800 dpi with an expanded 8-head, 8-ink-slot configuration, it's engineered as the flagship of Mimaki's best-selling UJF line — suited to high-accuracy, high-volume direct-to-object production.
Precision and Texture, Pushed Further
New features build on the proven UJF-7151 platform without giving up its industrial-grade stability.
1,800 dpi Precision
Light cyan and light magenta inks deliver rich, smooth gradations at Mimaki's highest UJF resolution to date.
Enhanced 2.5D Texture Maker
Build layered, tactile surfaces up to 5 mm thick for embossed and Braille-style dimensional printing.
Curved-Surface Printing
LD3 Mode prints flawlessly on objects with up to 10 mm of height variation, with an accelerated primer function running 3.7x faster on glass, metal, and acrylic.
Low-VOC Ink, Smart Automation
The UJF-7151 plusII e runs on GREENGUARD Gold certified, low-VOC UV-LED inks, with Mimaki Circulation Technology keeping white ink suspended across all channels. Smart Automation features — Mimaki Application Assistant (MA2), Mimaki Remote Access (MRA), and the Nozzle Recovery System — keep production running with less operator intervention.
- GREENGUARD Gold certified, low-VOC UV-LED inks
- Mimaki Circulation Technology on all ink channels
- MA2 + MRA smart automation and remote monitoring
Ink Types
LH-100 — Rigid UV Ink
Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, White, Clear. Optimized for hard, rigid substrates.
LUS-120 / LUS-350 — Flexible UV Ink
Flexible formulations for materials that bend or compress, plus MUH-100-Si metallic silver ink for specialty finishes.
Eight configurable ink slots mean the UJF-7151 plusII e can run a standard 4-color setup or scale up to light colors, white, clear, primer, and metallic finishes without swapping machines.
Smart Automation Suite
MA2, MRA & RasterLink
Mimaki Application Assistant (MA2) and Mimaki Remote Access (MRA) pair with included RasterLink RIP software for variable data and jig printing, while the Nozzle Recovery System keeps production moving with minimal downtime.
Full Specifications
Print & Ink
| Print Head | 8 on-demand piezo heads, staggered array |
| Print Resolution | 600 / 900 / 1200 / 1800 dpi |
| Print Speed (4 Color Mode) | Up to 1,122 objects/hour (test conditions) |
| Ink Type | LH-100 (C,M,Y,K,W,Cl), LUS-120 (C,M,Y,K,W), LUS-350 (C,M,Y,K,W,Cl), PR-200 Primer, MUH-100-Si Metallic Silver |
| Ink Package | 1L bottles (250ml for LH-100/LUS-120/PR-200) |
Media & Print Area
| Max. Print Area | 710 x 510 mm (27.9 x 20.0 in) |
| Max. Thickness | 153 mm (6.02 in) |
| Media Weight | 30 kg (66 lb) max |
Power & Environment
| Power Supply | Single-phase AC100–240V +6%/-10%, 50/60Hz ±1Hz |
| Power Consumption | AC100V: 1.3kW or less |
| Operating Temp. | 15–30°C (59–86°F) |
| Operating Humidity | 35–65% Rh (non-condensing) |
Interface, Certifications & Dimensions
| Interface | Ethernet (10/100/1000 BASE) / USB 2.0 |
| Certifications | VCCI Class A, FCC Class A, ETL UL 62368-1, CE Marking (EMC/LVD/Machinery/RoHS), CB, REACH, GREENGUARD Gold |
| Dimensions (W×D×H) | 2,203 × 1,580 × 1,293 mm (87 x 62 x 51 in) |
| Weight | 330 kg (728 lb) |
