A2 Desktop Printing, Direct to Object

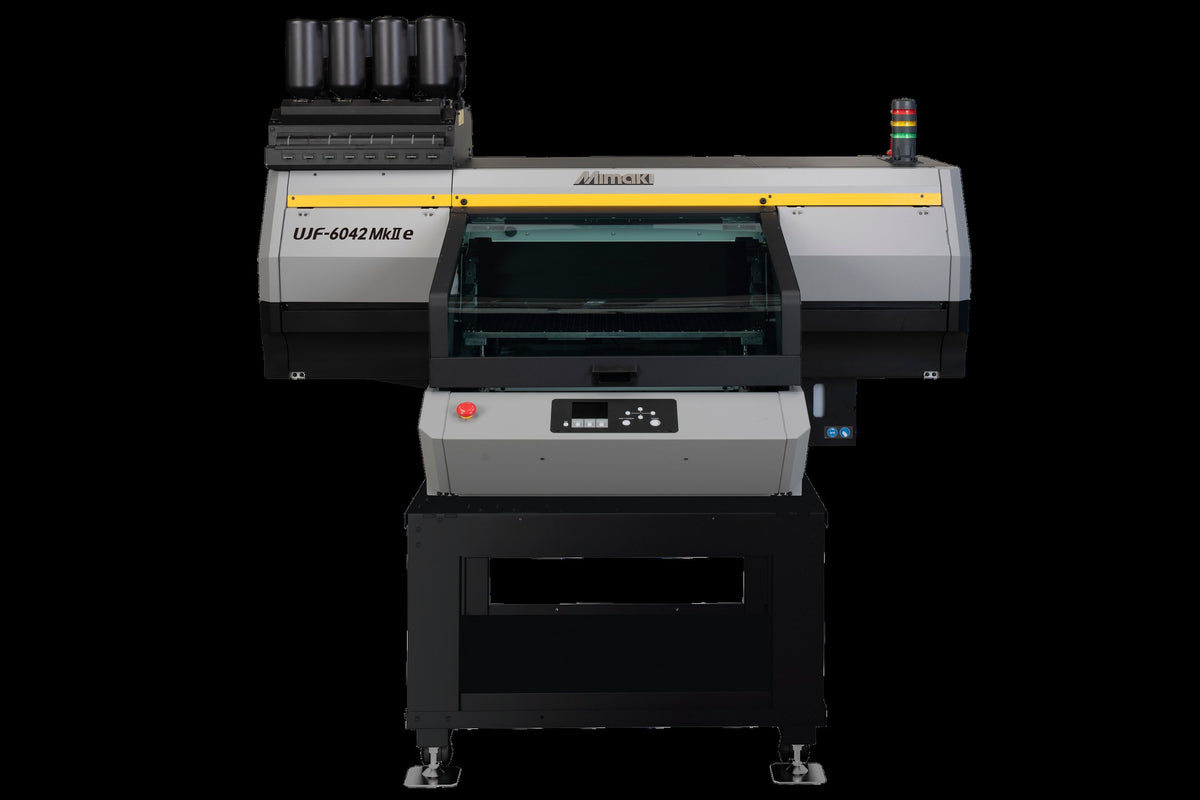

The UJF-6042 MkII e is a desktop UV-LED flatbed printer engineered for precision direct-to-object printing. With a 16.5" x 24" (420 x 610 mm) print area and media clearance up to 6" (153 mm), it fits promotional products, retail goods, packaging components, and electronics without leaving desktop-printer footprint or price.
Four printheads and eight ink slots give it enough ink flexibility to run CMYK with white, clear, and primer simultaneously — no reconfiguration required between jobs.
Sharper Output, Less Babysitting
Newer image processing and automatic maintenance mean less time spent troubleshooting between jobs.
MFD2 Image Processing
Sharper, more refined output paired with an upgraded gap check laser sensor that detects media placement — even on transparent materials — to protect the printheads.
MAPS4, WFC & Variable Dot
Mimaki Advanced Pass System, Waveform Control, and Variable Dot Technology combine to reduce banding and produce smooth gradations at any resolution.
Automatic Maintenance
Automatic Cleaning Function and Wiper Cleaner handle routine upkeep, while Mimaki Remote Access delivers maintenance alerts and real-time monitoring.
Low-VOC Ink, Enclosed for Safety
The UJF-6042 MkII e runs on GREENGUARD Gold certified, low-VOC UV-LED ink, and its enclosed print area reduces both dust contamination and operator UV exposure — a meaningful advantage for desktop placement in shared workspaces.
- GREENGUARD Gold certified, low-VOC UV-LED inks
- Enclosed print area reduces dust and UV exposure
- Mimaki Circulation Technology keeps white ink in suspension
Ink Types
Standard 4-Color + White/Clear/Primer
Cyan, Magenta, Yellow, Black with White for opacity, Clear for gloss and spot effects, and Primer for adhesion on difficult substrates.
Light Color Expansion
Eight ink slots leave room to add Light Cyan and Light Magenta for smoother gradations on photo-quality work.
The optional Kebab rotary accessory adds 360-degree direct printing on cylindrical items — tumblers, bottles, cans, and candle holders — through the same RasterLink workflow.
Kebab Cylindrical Printing
360° Direct Printing on Round Objects
The Kebab option mounts directly to the UJF-6042 MkII e's flatbed table and runs through Mimaki's RasterLink software, opening up direct printing on stainless steel tumblers, bottles, cans, vases, and packaging — no separate machine required.
Full Specifications
Print & Ink
| Print Head | 4 on-demand piezo heads, staggered array |
| Print Resolution | Maximum: 1200 x 1200 dpi |
| Print Speed | Up to 468 objects/hour (test conditions) |
| Ink Type | LH-100 (C,M,Y,K,Lc,Lm,W,Cl), LUS-120 (C,M,Y,K,Lc,Lm,W,Cl), LUS-150 (C,M,Y,K,W), PR-200 Primer |
| Ink Package | 1L & 250ml bottles (LH-100 & LUS-120 only) |
Media & Print Area
| Max. Print Area | 600 x 420 mm (23.6 x 16.5 in) |
| Max. Thickness | 153 mm (6.02 in) |
| Max. Media Weight | 8.0 kg (17.1 lb) |
Power & Environment
| Power Supply | Single-phase AC100–240V ±10%, 50/60Hz ±1Hz |
| Operating Temp. | 20–30°C (68–86°F) |
| Operating Humidity | 35–65% Rh (non-condensing) |
Interface, Certifications & Dimensions
| Interface | Ethernet 1000BASE-T, USB2.0 Hi-Speed |
| Certifications | VCCI Class A, FCC Class A, ETL IEC 62368-1, CE Marking (EMC/LVD/Machinery/RoHS), CB, REACH, Energy Star, EAC, RCM |
| Dimensions (W×D×H) | 1,666 × 1,290 × 856 mm (65.6 x 50.8 x 33.7 in) |
| Weight | 150 kg (330.7 lb) |
