Big Impact, Small Footprint

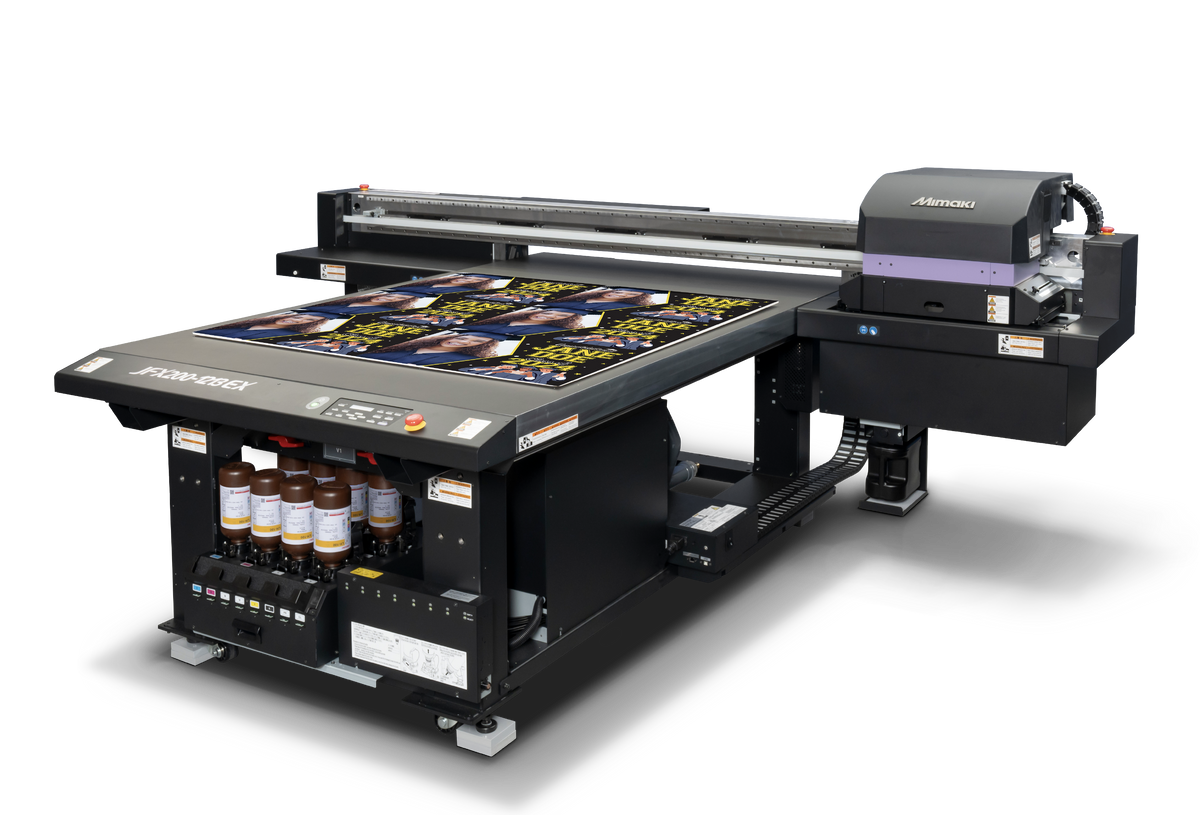

The JFX200-1213 EX is Mimaki's medium-format UV-LED flatbed printer, built for shops that want wide-format print quality without giving up wide-format floor space. It's sized to fit where a desktop UV printer used to sit, while stepping up to a true flatbed workflow — rigid or flexible, flat or textured, one-off signage or a jig full of parts at once.
That compact footprint doesn't come at the cost of capability. The JFX200-1213 EX handles everything from ADA-compliant signage to 2.5D textured surfaces, making it a practical upgrade path for print shops with limited space but growing production needs.
Built on Mimaki's Core Print Technologies
The same engineering behind Mimaki's larger flatbeds is scaled down into this machine's compact frame.
Variable Dot Technology
Adjusts droplet size on the fly to smooth gradients and fine detail without sacrificing print speed.
Nozzle Recovery System
Automatically detects clogged or missing nozzles and runs recovery cleaning, cutting down on unplanned downtime.
Mimaki Advanced Pass System
Reduces banding across passes for consistent, even color laydown on every print.
Low-VOC Inks, Remote-Ready Monitoring
The JFX200-1213 EX runs on GREENGUARD Gold certified inks, a meaningful advantage for shops producing signage and displays destined for indoor spaces. Pair that with built-in IoT connectivity through Mimaki's PICT software, and the printer keeps an eye on its own performance and production status from anywhere.
- GREENGUARD Gold certified inks for low-VOC indoor use
- IoT-ready with remote monitoring via Mimaki PICT software
- Production and event notifications sent automatically
Ink Types
LH-100 — Rigid UV Ink
Cyan, Magenta, Yellow, Black, White, Clear. Formulated for hard, rigid substrates like wood, metal, and acrylic.
LUS-120 / LUS-150 / LUS-350 — Flexible UV Ink
Full color sets including White and Clear, with Light Cyan and Light Magenta available on LUS-150 for smoother gradients on flexible media.
Choosing between rigid and flexible ink families lets the JFX200-1213 EX move between hard signage stock and flexible roll-fed materials without changing machines.
Full Specifications
Print & Ink
| Print Head | Three staggered on-demand piezo heads |
| Print Resolution | 300 / 450 / 600 / 900 / 1200 dpi |
| Print Speed (4 Color Mode) | Up to 269 sq ft/hr (25 m²/h) |
| Ink Type | Rigid: LH-100 (C, M, Y, K, Lc, Lm, W, Cl) — Flexible: LUS-150 (C, M, Y, K, Lc, Lm, W, Cl via LH-100), LUS-120 (C, M, Y, K, W, Cl), LUS-350 (C, M, Y, K, W, Cl) |
| Interface | Ethernet 10,000 BASE-T |
Media & Print Area
| Max. Print Area | 50.0 in x 51.2 in (1270 mm x 1300 mm) |
| Max. Media Area | 52 in x 54 in (1320 mm x 1370 mm) |
| Max. Media Thickness | Up to 1.97 in (50 mm) |
| Max. Media Weight | 110.3 lb (50.0 kg) |
Power & Environment
| Power Supply | Single phase AC200–240V ±10%, 50/60Hz ±1Hz x 1 |
| Power Consumption | 2.88 kVA or less |
| Operating Temp. | 15–30°C (68–86°F) |
| Operating Humidity | 35–65% Rh (non-condensing) |
Interface, Certifications & Dimensions
| Interface | Ethernet 10,000 BASE-T |
| Certifications | VCCI Class A, CE Mark, CB Report, UL (UL62368-1), RoHS Directive, FCC Class A, Machinery Directive, RCM |
| Dimensions (W×D×H) | 125 x 96 x 49 in (3175 x 2450 x 1250 mm) |
| Weight | 1124 lb (510 kg) |
