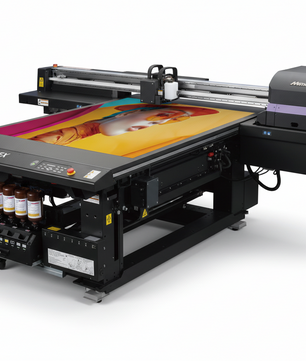

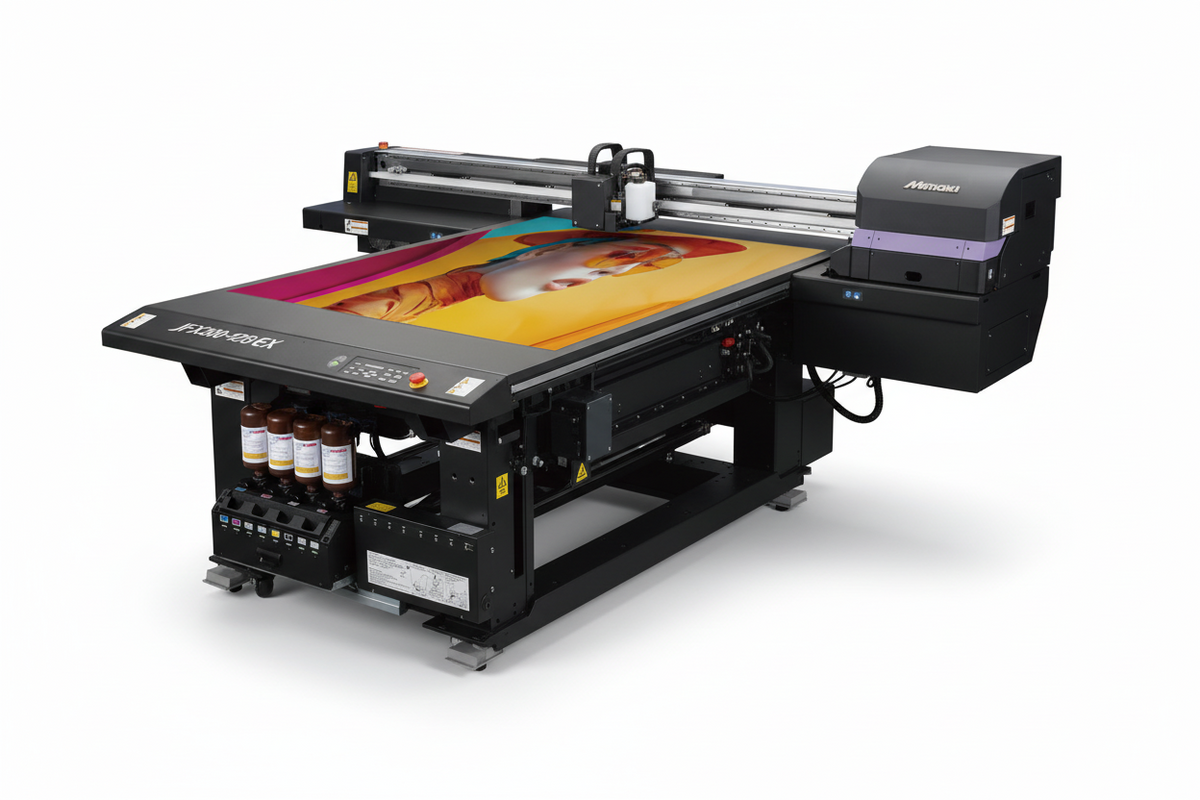

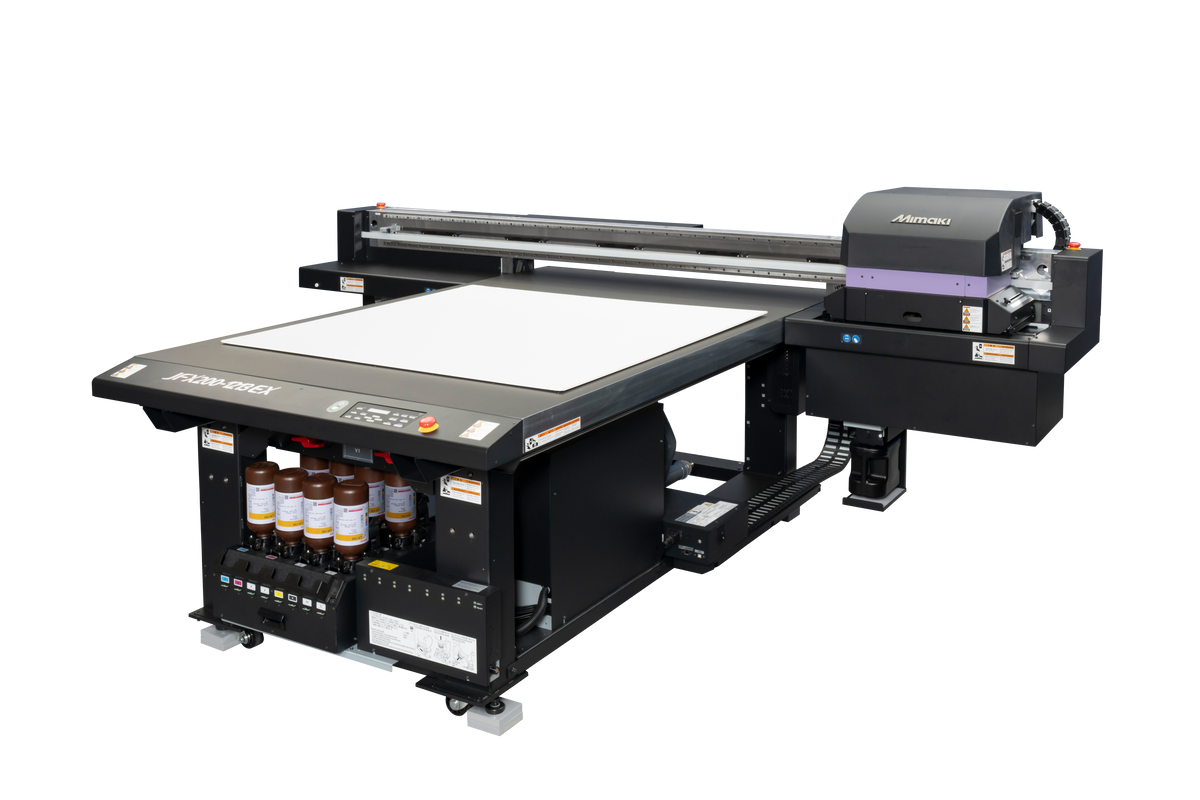

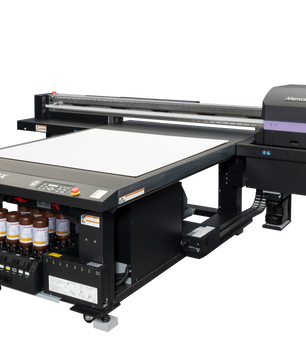

Blazing Speed, High Definition
The JFX600-2513 is the fastest model in the world's best-selling JFX Series line. Built around a 16-head array, it's 330% faster than its predecessor, the JFX500-2131, and can complete a full 8' x 4' board print in under 60 seconds.
Compact for its production class, the JFX600-2513 is geared toward shops that need high accuracy and blazing speed without stepping up to the JFX600-2531's extra-large footprint.
Production Speed Without the Compromises
Mimaki's core print technologies keep image quality high even at top speed.
16 On-Demand Piezo Heads
Print speeds up to 2,152 sq ft/hr — equivalent to roughly 67 boards per hour in production mode.
Core Print Technologies
Variable Dot Technology and Mimaki Advanced Pass System (MAPS) reduce banding and grain, while the Nozzle Recovery System keeps output stable between service visits.
Two Selectable Vacuum Zones
A compact design with dual vacuum zones keeps setup efficient without the footprint of the larger JFX600-2531.
Low-VOC Inks, IoT-Ready Production
The JFX600-2513 runs on GREENGUARD Gold certified UV-LED inks, with a production workflow that's IoT-ready via PICT remote monitoring — so shop managers can track machine status and ink usage without being on the floor.
- GREENGUARD Gold certified, low-VOC UV-LED inks
- PICT remote monitoring for production status and ink levels
- On-machine job and maintenance control via Mimaki Print Controller
Ink Types
LH-100 — 4-Color Set
Cyan, Magenta, Yellow, Black. Rigid UV ink built for maximum production speed on standard signage and packaging.
LH-100 — 6-Color + White/Clear/Primer
Adds Light Cyan and Light Magenta for richer expression, plus White, Clear, and Primer for opacity and adhesion on rigid PVC, acrylic, glass, metal, and wood.
The same 16-head engine that powers the larger JFX600-2531 gives the JFX600-2513 the flexibility to move between rigid boards and flexible media without swapping machines.
Mimaki Print Controller
On-Machine Job & Maintenance Control
The JFX600-2513's on-board touch screen (MPC) puts job queuing and maintenance controls at the machine, keeping production workflow ready without extra software steps.
Full Specifications
Print & Ink
| Print Head | 16 on-demand piezo heads, staggered array |
| Print Resolution | 600x600 / 600x1200 / 1200x1200 dpi |
| Print Speed (4 Color Mode) | Up to 2,152.78 ft²/hr (200.0 m²/h) |
| Ink Type | LH-100, LUS-120, LUS-150 |
| Ink Package | 1L bottle |
Media & Print Area
| Max. Print Area | 2,500 x 1,300 mm (98.43 x 51.18 in) |
| Max. Media Width | 2,500 mm |
| Max. Media Thickness | 60 mm (2.36 in) |
| Max. Media Weight | 110.2 lb (50 kg/m²) |
Power & Environment
| Power Supply | AC 200–240V, 50/60Hz |
| Power Consumption | x3 AC200-240±10% ~16kVA, 50/60Hz ±1Hz |
| Operating Temp. | 15–30°C (68–86°F) |
| Operating Humidity | 35–65% Rh (non-condensing) |
Interface, Certifications & Dimensions
| Interface | Ethernet 10,000 BASE-T |
| Certifications | UL 775 ETL, CE Marking (EMC/LVD/Machinery), RoHS/REACH/EAC |
| Dimensions (W×D×H) | 5,300 × 2,850 × 1,700 mm (207.48 x 110.24 x 62.99 in) |
| Weight | 1,200 kg (2,645.5 lb) |
